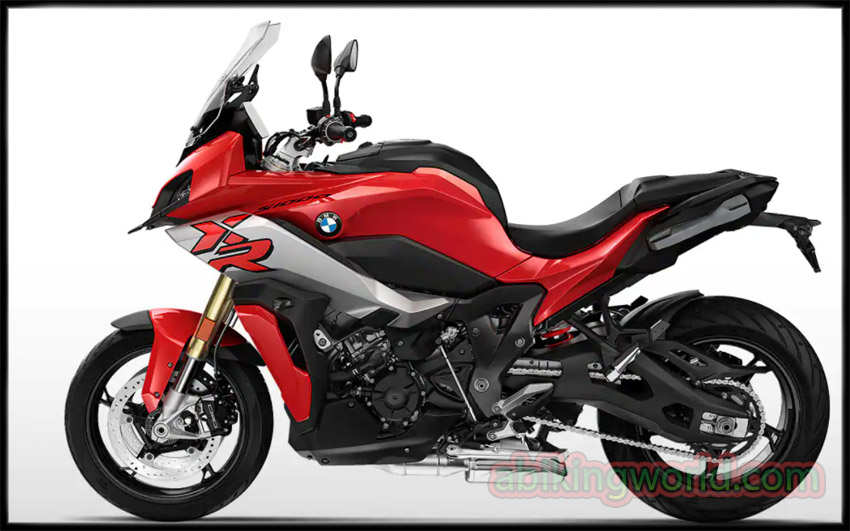

BMW S 1000XR

Make no concessions, demand it all. From yourself, but also from your machine. Always fighting for the racing line: every curve a few degrees deeper, a few millimetres tighter. Kilometre after kilometre. With the new S 1000 XR, you have a motorcycle that also makes no compromises.

It combines athleticism and long-distance performance in perfect form. Its sporty aggressiveness comes from the RR. Its outstanding ergonomics with the upright, relaxed seat position, however, allows you to fight for every curve and straightaway all day.

A racetrack that only finishes when you want. How it should be. That is how we view the XR. What about you?

On the racing line – even in the design.

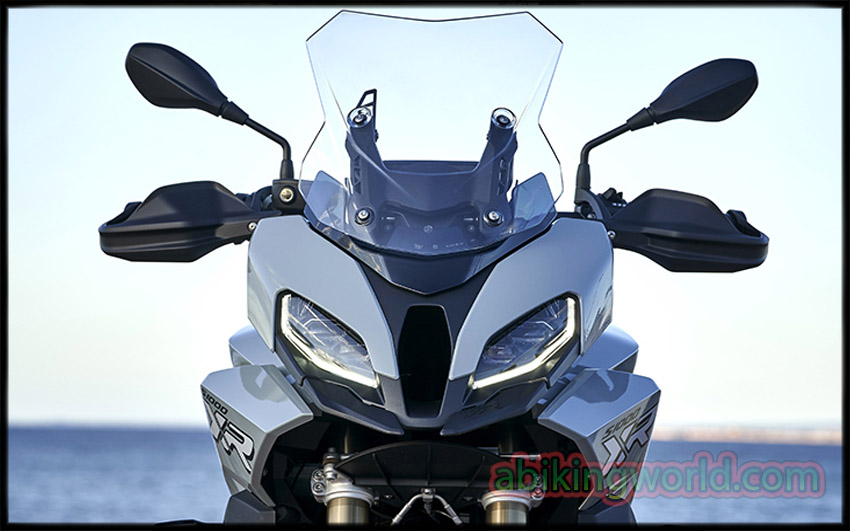

The front fairing and lighting system are defined by sharp edges. Combined with striking beading, they shape the overall line – aggressively and consistently to the finish: it’s no accident that the visually short tail is reminiscent of a sport bike.

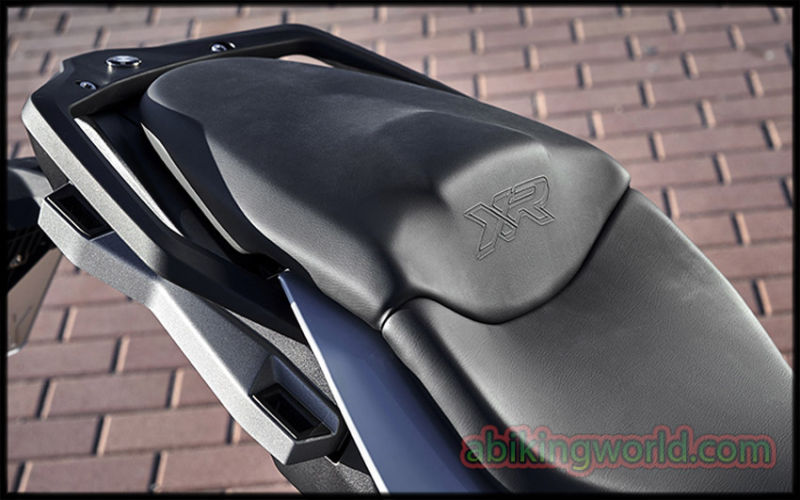

The hinted snout, the high flyline, and the comfortable handlebars indicate an insatiable hunger for kilometres. Kilometres that are great fun in the long-distance seat position, even after days at a time – also thanks to the revised aerodynamics and fairing.

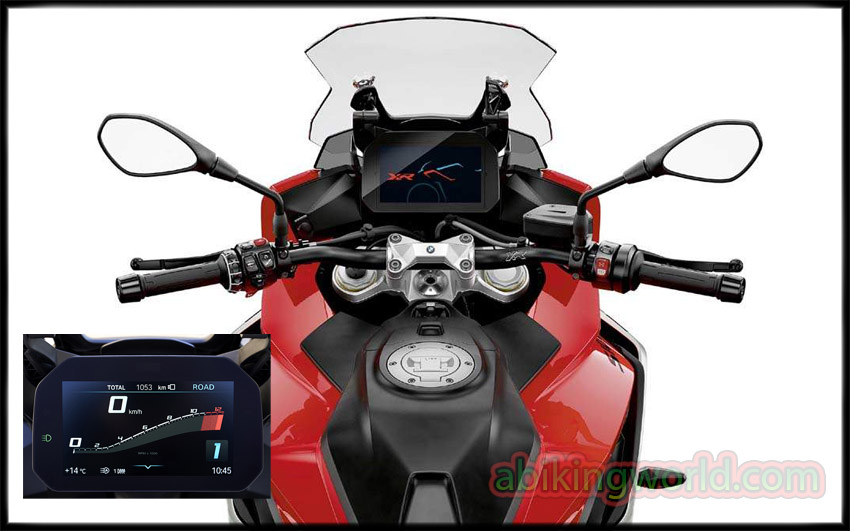

It provides even better protection against the cold, driving noises and the elements. The adjustable windshield means you can keep your eyes on the road, and the odometer, without your helmet shaking.

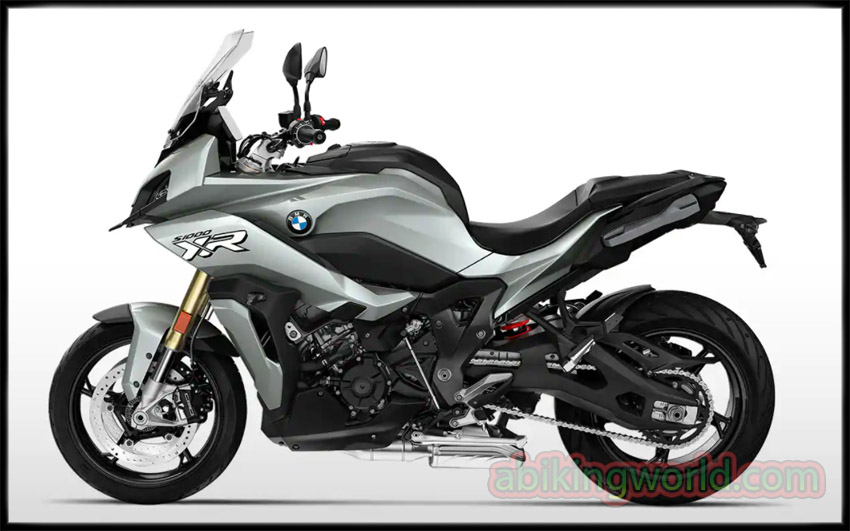

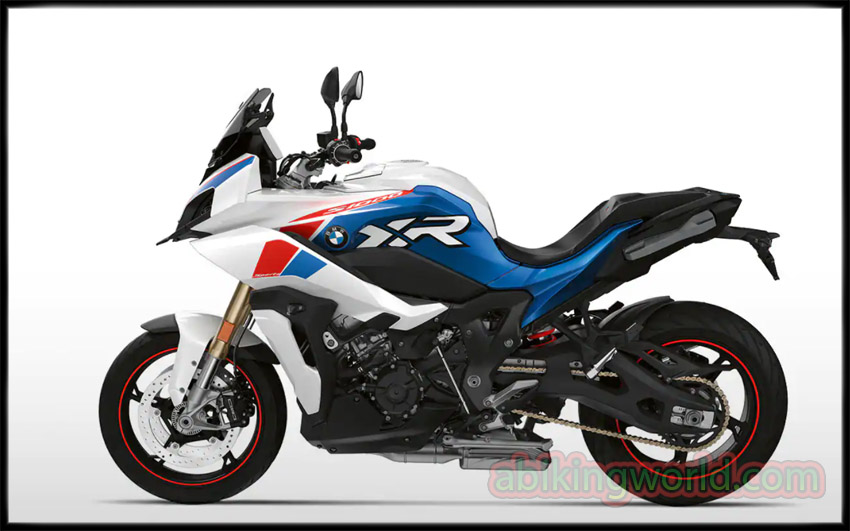

Colours with expression.

With the paint variants of the S 1000 XR, you are already making a clear visual sign. Defined and precise, the colours emphasise the sporty, angular character of the machine down to the last detail.

A curve that makes you addicted: our torque.

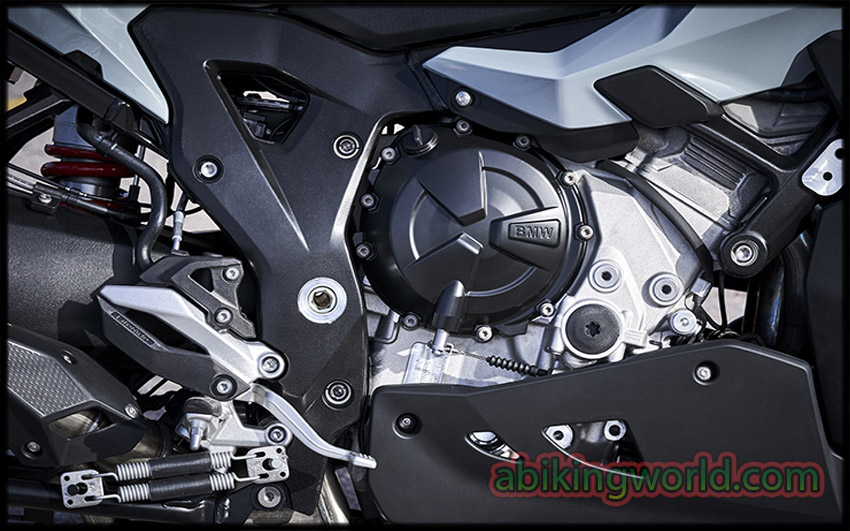

The engine of the S 1000 XR is based on the high-performance engine of the new RR and was optimised according to the XR for uncompromising long-distance performance: among other things, special camshaft profiles and designated manifolds deliver impressive torque from the middle and the widest usable speed range in its class.

The longer gearbox in the upper gears ensures smooth running – which you can feel and hear.

More dynamic thanks to the lower weight.

Dynamism is also a question of mass. Even fully equipped, the S 1000 XR weighs a full 10 kg less than its predecessors. In the lightest configuration, this bike is ready to ride at just 223 kg.

You won’t miss a single gram, but you will feel each individual one – on every meter. In the form of better acceleration, higher agility, shorter braking distances, and easier manoeuvring.

Rapid assistance anywhere.

The ECALL “intelligent emergency call” system developed by BMW Motorrad automatically makes contact with the BMW call centre in the even of an accident.

The system is fixed to the handlebar and contacts emergency services as quickly as possible. Use of the ECALL system is proven to bring emergency services to the site of an accident more quickly and better informed.

MODEL	BMW S 1000XR
ENGINE TYPE	Four stroke, transverse four cylinder, DOHC, valve actuation via single rocker arms , 4 valves per cylinder, Intake/outlet mm 33.5/27.2
Year	2020
Displacement / Capacity	999 cc / 60.9 cu-in
Bore X Stroke	80 x 49.7 mm
Compression Ratio	12.5:1
Cooling System	Liquid Cooled
Max Power	121 kW / 165 hp @ 11000 rpm
Max Torque	114 Nm / 84 lb-ft @ 9250 rpm
Mixture Control	Electronic injection, throttle valve 48 mm
Engine Management	BMS-X
Start System	Electric
TRANSMISSION SPECS
Lubrication	Wet sump
Gear Box	Constant -mesh 6-speed gearbox, straight-toothed
Clutch	Self-reinforcing multi-plate anti-hopping wet clutch, mechanically activated
Primary / Final Drive	Final Drive : Chain Primary Ratio : 1.652
Transmission Ratio	2.647
Gear Ratio	1st 2.647 / 2nd 2.091 / 3rd 1.727 / 4th 1.476 / 5th 1.304 / 6th 1.261
CHASSIS SPECS
Frame	Construction type aluminium perimeter frame, engine self-supporting
Front Suspension	43mm Upside-down telescopic fork, slide tube, Dynamic. ESA, damping electronically adjustable

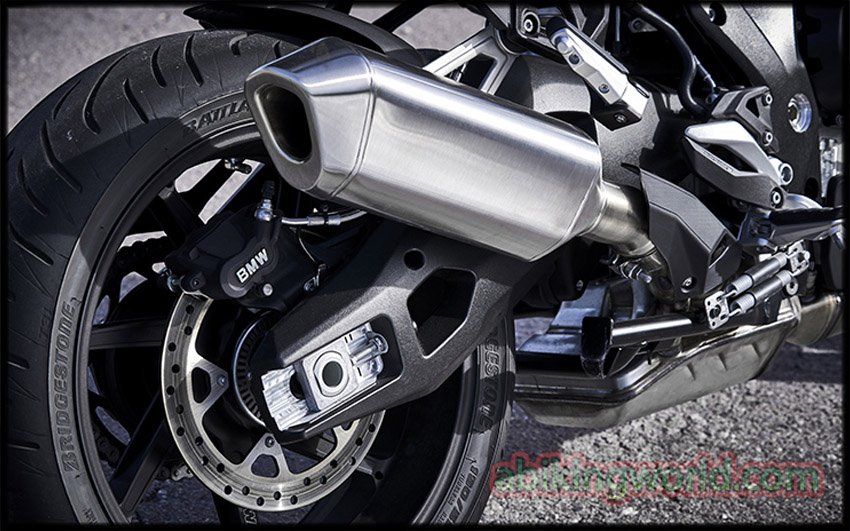

Rear Suspension	Aluminium underslung double-sided swinging arm with central spring strut, Dynamic ESA, damping electronically adjustable
Brakes	Front Brakes: 2X 320mm discs floating, radial 4-piston fixed calipers Rear Brakes : Single 220 mm disc, 1 piston floating caliper ABS: BMW Motorrad ABS Pro
Traction Control	BMW Motorrad DTC
Emission Control	Closed-loop 3-way catalytic converter
DIMENSION SPECS
Overall Length	2333 mm / 91.8 in
Seat Height	840 mm / 33.0 in
Overall Height
Overall Width	850 mm / 33.4 in with mirrors
Overall Weight	Dry Weight - Wet Weight - 226 kg / 498 lbs
Wheelbase	1552 mm / 61.1 in
Inner Leg Curve
WHEEL SPECS
Wheels / Rims	Front Wheel : Rear Wheel:
Front Tyre	120/70 ZR17
Rear Tyre	190/55 ZR17
Front Wheel Travel	150 mm / 5.9 in
Rear Wheel Travel	140 mm / 5.5 in
Castor	117 mm / 4.6 in
Steering Angle	64.5°
FUEL SYSTEM
Fuel Capacity	20 Litres / 5.2 US gal
Fuel Reserve	4 Litres / 1.1 US gal
Fuel Consumption
CAPACITIES
Engine oil
Brake fluid
Top Speed	274 km/h (170 mph) (estimated)
