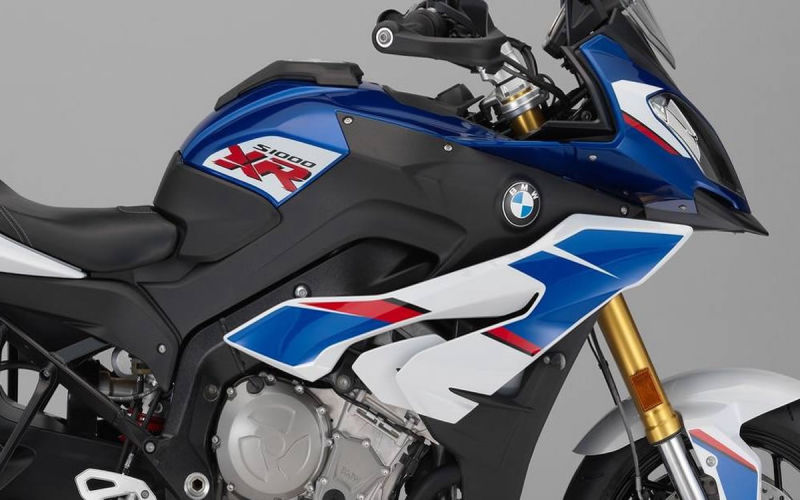

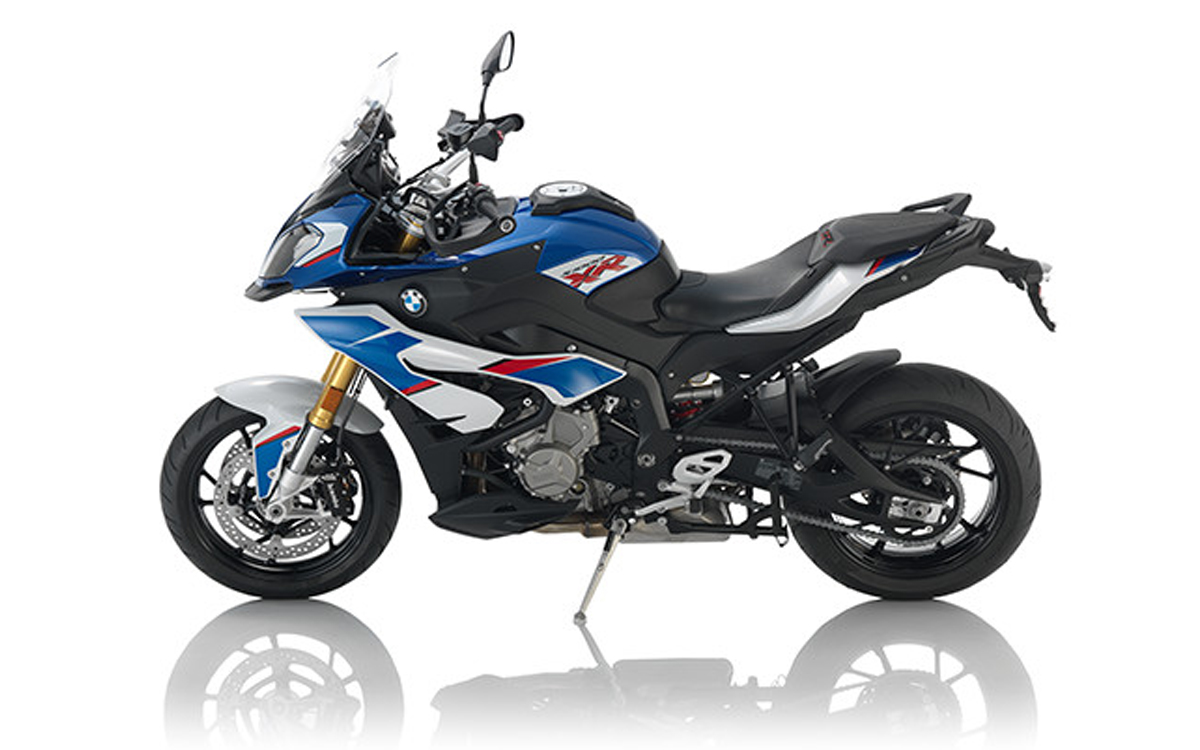

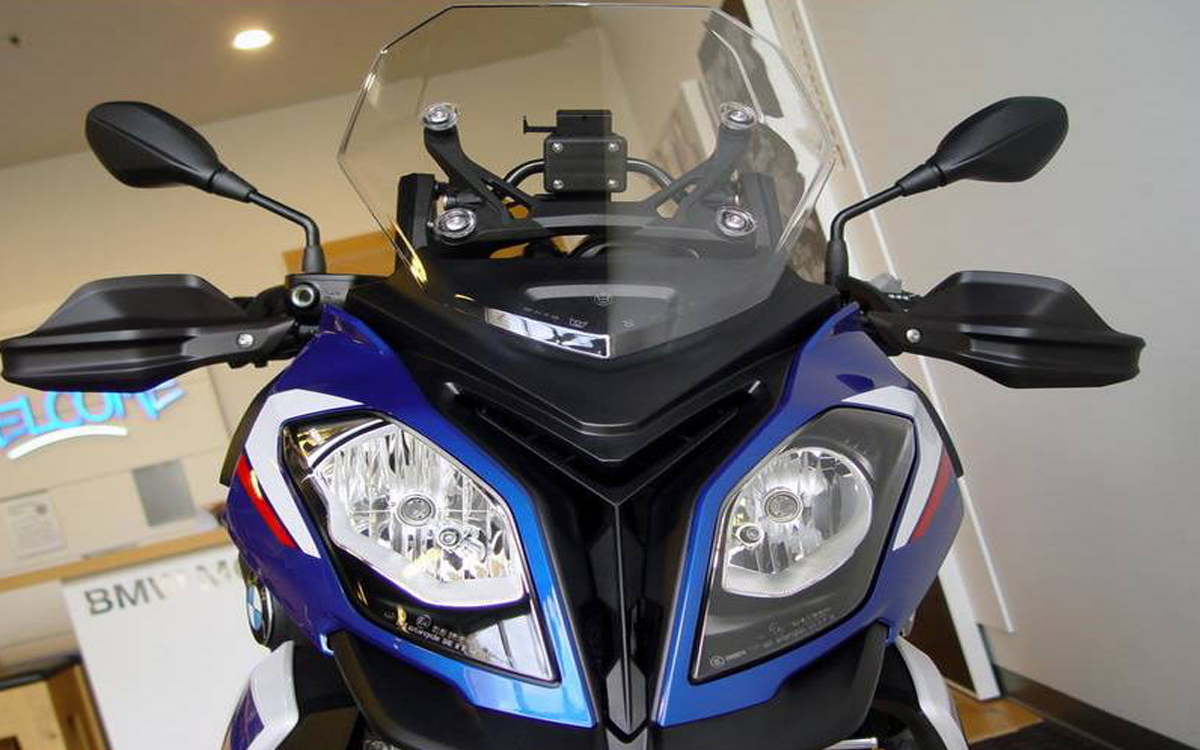

| MODEL | BMW S 1000 XR |
|---|---|
| ENGINE TYPE | Water/oil-cooled 4-cylinder 4-stroke in-line engine, four valves per cylinder, two overhead camshafts |
| Year | 2018 |
| Displacement / Capacity | 999cc |
| Bore X Stroke | 80 mm x 49.7 mm |
| Compression Ratio | 12.0 : 1 |
| Cooling System | Liquid Cooled |
| Max Power | 160 horsepower @ 11,500 rpm |
| Max Torque | 83 ft/lbs @ 9250 rpm |
| Ignition | Injection. Electronic Injection |
| Induction | |
| Start System | Electric |
| TRANSMISSION SPECS | |
| Lubrication | Wet Sump |
| Gear Box | Six-speed |
| Clutch | Multiplate clutch in oil bath, anti-hopping clutch, mechanically controlled |
| Primary / Final Drive | Final Drive : Chain Primary Drive : |
| Secondary drive | |
| Gear Ratio | 1st 2.647 / 2nd 2.091 / 3rd 1.727 / 4th 1.500 / 5th 1.360 / 6th 1.261 |
| CHASSIS SPECS | |
| Frame | Aluminum bridge-type w/ load-bearing engine |
| Front Suspension | Upside-down telescopic fork, stanchion diameter 46 mm, adjustable for bump and rebound optional: Dynamic ESA |
| Rear Suspension | Aluminium double-strut swing arm with central spring strut, adjustable for rebound, optional: Dynamic ESA |
| Brakes (ABS Standard) | Front Brakes: 2 x 320 mm Discs, 4 piston calipers, ABS Pro. (Dynamic brake light currently for EU markets only) Rear Brakes : Single 220 mm disc, 1 piston caliper, ABS Pro . (Dynamic brake light currently for EU markets only) |
| Traction Management | |
| Exhaust System | Three-way catalytic converter, balance pipe, compliant with EU4 emission standard |
| DIMENSION SPECS | |
| Overall Length | 2183 mm (85.9 inches) |
| Seat Height | 840 mm (33.1 inches) If adjustable, lowest setting. |
| Overall Height: | 1138 mm (44.8 inches) |
| Overall Width | 940 mm (37.0 inches) |
| Overall Weight | Dry Weight - 178.0 kg (392.4 pounds) Wet Weight - 228.0 kg (502.7 pounds) |
| Wheelbase | 1548 mm (60.9 inches) |
| Rake and Trail | Rake: 25.5 degrees Trail: 4.6 inches |
| WHEEL SPECS | |
| Front Tyre | 120/70-ZR17 |
| Rear Tyre | 190/55-ZR17 |
| Front Wheel Travel | 150 mm (5.9 inches) |
| Rear Wheel Travel | 140 mm (5.5 inches) |
| Castor | 117 mm / 4.6 in |
| Steering Head Angle | 64.5° |
| FUEL SYSTEM | |
| Fuel Capacity | 20.00 litres (5.28 gallons) |
| Fuel Reserve | 4.00 litres (1.06 gallons) |
| Fuel consumption: | 6.70 litres/100 km (14.9 km/l or 35.11 mpg) |
| CAPACITIES | |
| Engine oil w/o Filter | |
| Engine oil with filter | |
| Brake fluid | |
| Top Speed | 200.0 km/h (124.3 mph) |
