2021 BMW M 1000 RR SPECS

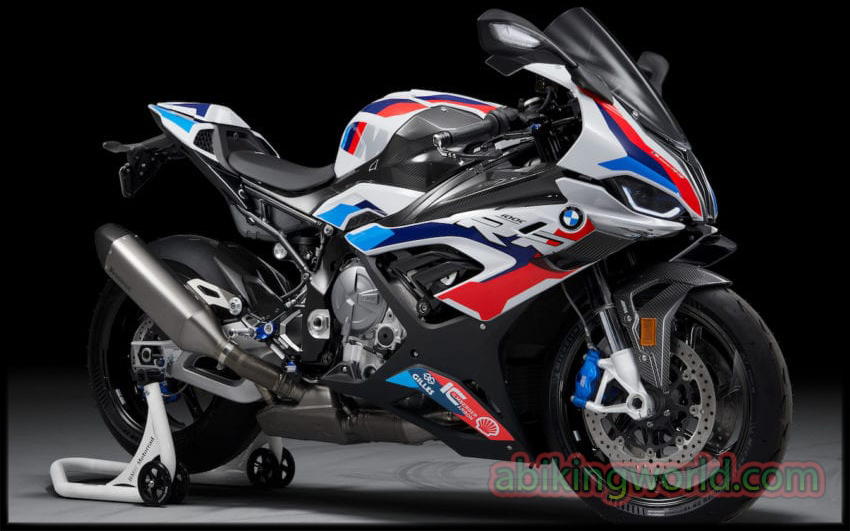

2021 BMW M 1000 RR

BMW M 1000 RR


How do you improve on the legend, the originator? When you are the bar…how do you raise it? By sweating the details.


To improve on the 205hp/83tq already being pumped out by the standard S1000 RR, BMW Motorrad enlisted the assistance of the fabled M division for the first time in history.


BMW M’s long-standing history and experience in motorsports meant a focus on losing weight and reducing friction within the 999cc inline 4-cylinder. As a result, horsepower increases to 212hp with redline reaching a stratospheric 15,100rpms.


Torque mildly increases to 83.4tq and peaks at 11,000rpms. With enough space, top speed is now a reported 189mph and 60mph arrives in 3 seconds from rest.
Inside the engine, titanium connecting rods are lighter, rocker arms are narrower, and the airbox feed is shorter.


For a shorter final drive, the rear sprocket gains a tooth and for greater stability, the wheel base has been lengthened.

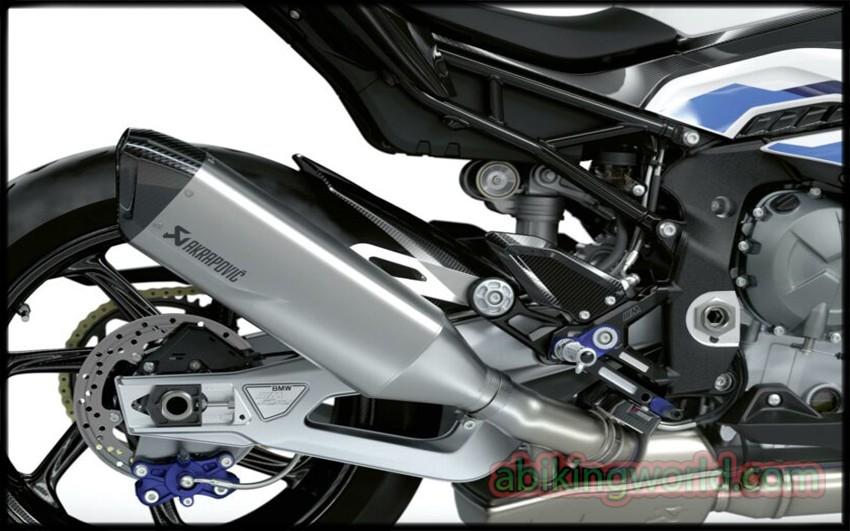

The new exhaust is full titanium and supplied by fabled manufacturer and long-time partner, Akrapovic. Monoblock M Brake calipers are anodized blue and provide superb clamping force and fade resistance. Spec the M Competition package for the M Endurance Chain and an aluminum swingarm for another 220 grams of weight savings.

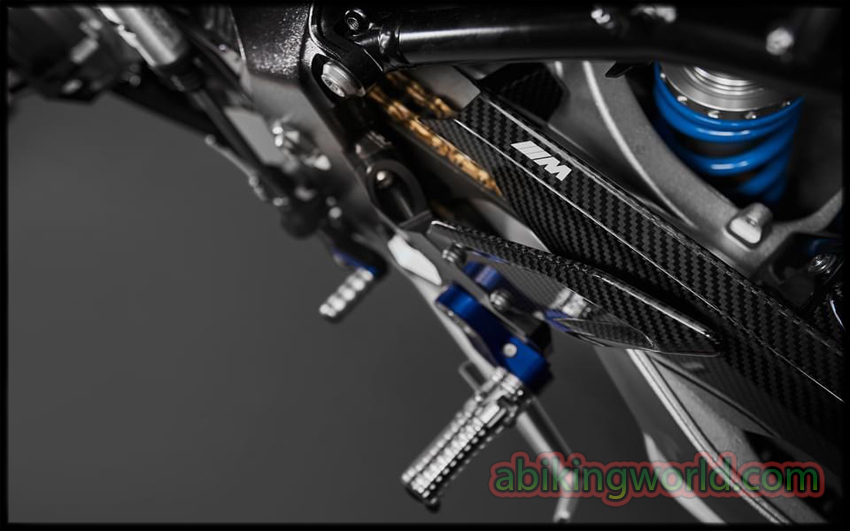

Aluminum-milled brake & clutch levers and rear sets are anodized blue, shave off a few more grams and provide better grip and adjustable foot positioning. The Carbon Package adds additional flare. Overall, the M1000 RR tips the scales at 423lbs with all fluids.

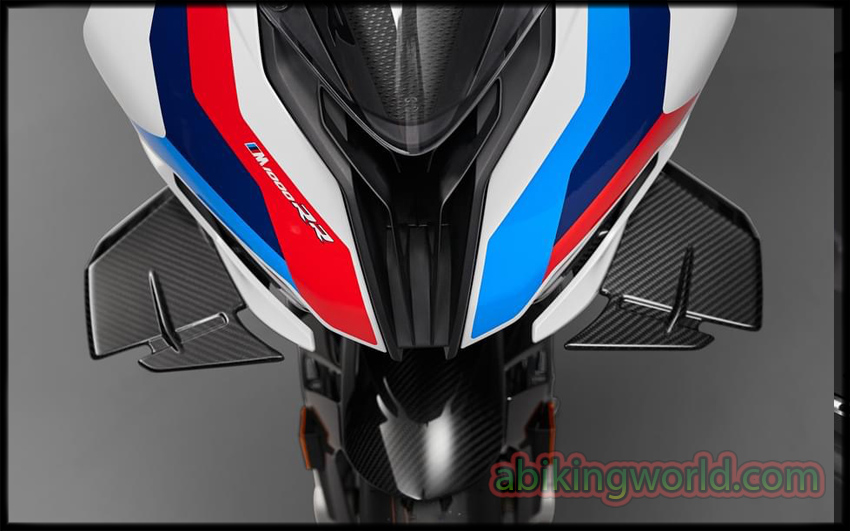

When it comes to aerodynamics, those carbon fiber front winglets are 100% functional, providing up to 35lbs of downforce at 189mph. The high windscreen provides increased rider protection from the elements, allowing the M1000 RR to cut through the air with less resistance.


In others words, less resistance means more efficient use of power.


The strongest, most powerful letter in the world, M, has finally arrived at BMW Motorrad.


limited Production :  500 Units


BMW M 1000 RR FACTORY SPECIFICATIONS

MODELBMW M 1000RR
ENGINE TYPEFour stroke, transverse four cylinder, DOHC, 4 titanium valves per cylinder and BMW ShiftCam
Year2021
Displacement / Capacity 999 cc / 60.9 cu-in
Bore X Stroke80 x 49.7 mm
Compression Ratio13.5:1
Cooling SystemWater / Oil cooled
Max Power156 kW / 212 hp @ 14500 rpm
Max Torque113 Nm / 83 lb-ft @ 11000 rpm
Ignition
Induction
Start SystemElectric, 0.8 kW
TRANSMISSION SPECS
LubricationWet sump
Gear BoxConstant-mesh 6-speed gearbox with straight cut gears
ClutchMultiplate clutch in oil bath, slipper clutch
Primary / Final DriveFinal Drive :  Chain 525 17/46
Primary Drive :
Secondary drive
Gear Ratio
CHASSIS SPECS
FrameBridge-type frame, cast aluminium, load-bearing engine
Front SuspensionUpside-down telescopic fork with a diameter of 45 mm,  adjustable compression and rebound stage, adjustable pre-load
Rear SuspensionAluminium swing arm, compression and rebound damping adjustable, adjustable pre-load
BrakesFront Brakes:  2x 320mm discs, M Brake 4-piston fixed caliper

Rear Brakes :  Single 220 mm disk, 2-piston fixed caliper

ABS:              BMW Motorrad ABS Pro (part integral), modes to select.
 ABS Pro :    ABS Pro settings for RAIN, ROAD, DYNAMIC mode, no ABS Pro in RACE and Race Pro 1-3 mode
Traction ControlBMW Motorrad DTC
Exhaust SystemClosed-loop 3-way catalytic converters, EU-5 norm
DIMENSION SPECS
Overall Length2073 mm / 81.6 in
Seat Height833 mm / 32.8 in
Overall Height1196.3 mm / 47.1 in (excl mirrors)
Overall Width848.3mm / 33.4 in (excl mirrors)
Overall WeightDry Weight -  170 kg
Wet Weight -  192 kg
Wheelbase
Inner Leg Curve
WHEEL SPECSCarbon wheels
Wheels / RimsFront Wheel : 3.50 x 17 inch
 Rear Wheel: 6.00 x 17 inch
Front Tyre120/70-ZR17
Rear Tyre200/55-ZR17
Front Wheel Travel120 mm / 4.7 in
Rear Wheel Travel117 mm / 4.6 in
Castor100 mm / 3.9 in
Steering Angle66.4°
FUEL SYSTEMUnleaded super(premium), octane number 95 - 98 (RON)
Fuel Capacity16.5 Litres / 4.4 US gal
Fuel Reserve4.00 litres (1.06 gallons)
Fuel Consumption6.5 litre  per 100 km based on WMTC
CAPACITIES
Engine oil
Brake fluid
Top Speed +- 190mph
