Ducati X Diavel 2019-2020 S FACTORY SPECIFICATIONS

Ducati XDiavel S

START OF GOOGLE ADS

Ducati X Diavel  S FACTORY SPECIFICATIONS

MODEL Ducati XDiavel S
ENGINE TYPEFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin, 4 Desmodromically actuated valves per cylinder,
dual spark
Year2019 - 2020
Displacement / Capacity 1262 cc / 77 cu in
Bore X Stroke106 x 71.5 mm
Compression Ratio13.0:1
Cooling SystemLiquid Cooled
Max Power114.7 kW / 156 hp @ 9500 rpm
Max Torque128.9 Nm / 13.1 kgf-m / 95 lb-ft @ 5000 rpm
IgnitionElectronic
InductionBOSCH fuel injection system, full ride-by-wire system, 56mm oval throttle  bodies
Start System Electric
TRANSMISSION SPECS
Lubrication
Gear Box6 Speed
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Primary / Final DriveFinal Drive :      Belt; Front sprocket Z28; Rear sprocket Z80
Primary Drive :  Straight cut gears, 1,84:1 ratio
Secondary drive
Gear Ratio1st 37:15 /     2nd 30:17 /     3rd 27:20 /     4th 24:22 /     5th 23:24 /    6th 22:25
CHASSIS SPECS
FrameTubular steel trellis frame
Front SuspensionAdjustable Ø 50 mm (Ø 1,97 in) usd fork with DLC treatment
Rear SuspensionSingle shock absorber, Adjustable preload and rebound, Remote reservoir.  Single sided swingarm, Cast/trellis frame
BrakesFront Brakes:    2x 320 mm semifloating discs, radial Brembo monobloc 4-piston M4-32  callipers and radial master cylinder

Rear Brakes :    265 mm (10,43 in) Disc, 2-piston floating calliper. BOSCH cornering ABS as standard equipment

ABS:                     BOSCH cornering ABS as standard equipment
Traction Management
Exhaust SystemBOSCH fuel injection system, Full ride-by-wire system, DEQ 56 oval throttle bodies
DIMENSION SPECS
Overall Length2235 mm (88.0 inches)
Seat Height755 mm (29.7 inches) If adjustable, lowest setting.
Overall Height
Overall Width
Overall WeightDry Weight -   220 kg / 485 lbs
Wet Weight -  247 kg / 545 lbs
Wheelbase1615 mm / 63.6 in
Inner Leg Curve
WHEEL SPECS
Wheels / RimsFront Wheel :   Light alloy, Cast and machined, 3.50 x 17
 Rear Wheel:    Light alloy, Cast and machined, 8.00 x 17
Front TyrePirelli Diablo Rosso II, 120/70 ZR17
Rear Tyre Pirelli Diablo Rosso II 240/45 ZR17
Front Wheel Travel  120 mm / 4.7 in
Rear Wheel Travel110 mm / 4.33 in
Rake:30.0°
Trail130 mm / 5.1 in
FUEL SYSTEMInjection. Bosch fuel injection system. Full ride-by-wire system.
Fuel Capacity17.00 litres (4.49 gallons)
Fuel Reserve
Fuel Consumption5.30 litres/100 km (18.9 km/l or 44.38 mpg)
ADDITIONAL
Top Speed150 mph (est)

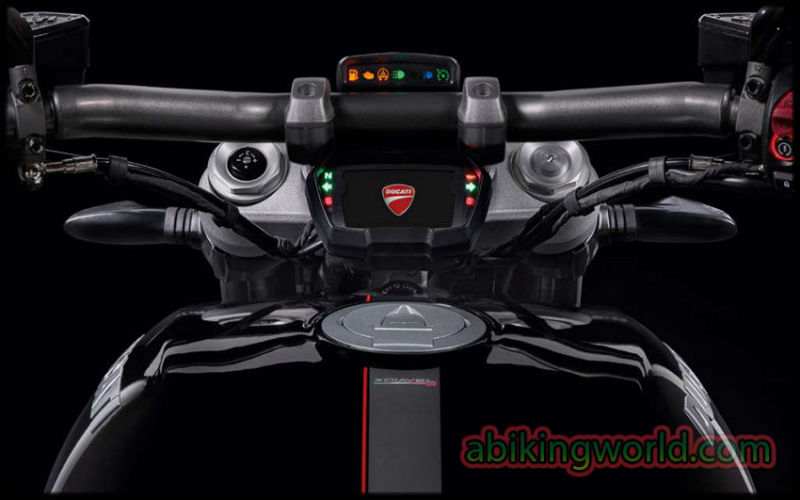

InstrumentationTFT colour display and dedicated warning light display
Standard Equipment
Showing entries (filtered from total entries)

Video Courtessy of Jaret Campisi




The S version is equipped as standard with a DRL (Daytime Running Light) system for the front light, DLC for the stems of the front fork and Brembo M50 monoblock callipers for the front brake.


The exclusivity of the XDiavel S is enhanced by visible mechanical finishings: the belt covers of the engine, the frame plates, the footpeg plates, and the wheels with their unique and exclusive design.


Finally, to complete the S version, the rear-view mirrors are machined as a single piece, the seat has bi-material covering, the natural anodised and brushed fork and the Bluetooth module for the infotainment system.



Ducati enters the Cruiser world and does so in its very own way, representing the best of both worlds.


The Ducati world: thrilling performance, sporty power, advanced electronics. The cruiser world: long, low, forward positioned footpegs, powerful torque even at low speeds, no compromise in terms of materals and finishes.


The XDiavel is now available in the new color Matt Liquid Concrete Grey.
