Ducati X Diavel S 2016 FACTORY SPECIFICATIONS

Ducati XDiavel S

Ducati X Diavel S FACTORY SPECIFICATIONS

MODELDucati XDiavel S
ENGINE TYPEFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin, 4 Desmodromically actuated valves per cylinder,
dual spark
Year2016
Displacement / Capacity 1262 cc / 77 cu in
Bore X Stroke106 x 71.5 mm
Compression Ratio13.0:1
Cooling SystemLiquid Cooled
Max Power114.7 kW / 156 hp @ 9500 rpm
Max Torque128.9 Nm / 13.1 kgf-m / 95 lb-ft @ 5000 rpm
IgnitionElectronic
Induction
Start System Electric
TRANSMISSION SPECS
Lubrication
Gear Box6 Speed
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Primary / Final DriveFinal Drive :         Belt; Front sprocket Z28; Rear sprocket Z80
Primary Drive :  Straight cut gears, 1,84:1 ratio
Secondary drive
Gear Ratio1st 37:15 /     2nd 30:17 /     3rd 27:20 /     4th 24:22 /     5th 23:24 /    6th 22:25
CHASSIS SPECS
FrameTubular steel trellis frame
Front SuspensionAdjustable Ø 50 mm (Ø 1,97 in) usd fork with DLC treatment

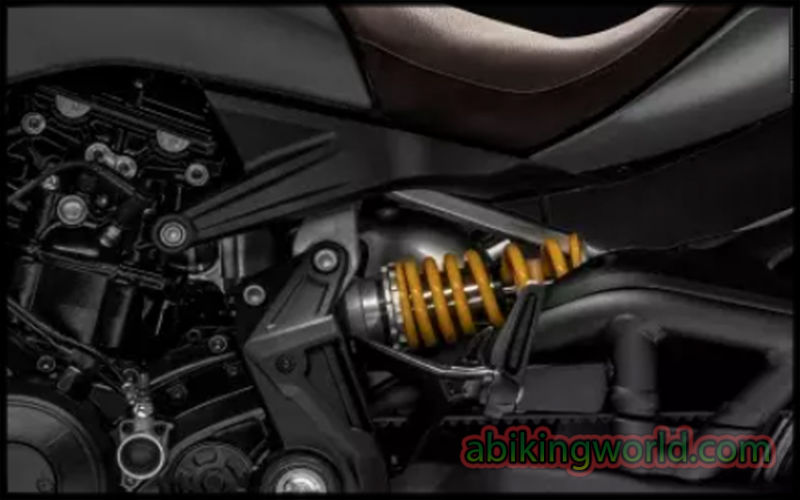

Rear SuspensionSingle shock absorber, Adjustable preload and rebound, Remote reservoir.  Single sided swingarm, Cast/trellis frame
BrakesFront Brakes:    2 x 320 mm (12,60 in) Semifloating discs, Radial callipers and radial master cylinder. BOSCH cornering ABS as standard equipment

Rear Brakes :    265 mm (10,43 in) Disc, 2-piston floating calliper. BOSCH cornering ABS as standard equipment

ABS:                     BOSCH cornering ABS as standard equipment
Traction Management
Exhaust SystemBOSCH fuel injection system, Full ride-by-wire system, DEQ 56 oval throttle bodies
DIMENSION SPECS
Overall Length
Seat Height755 mm / 29.7 in
Overall Height
Overall Width
Overall WeightDry Weight -   220 kg / 485 lbs
Wet Weight -  247 kg / 545 lbs
Wheelbase1615 mm / 63.6 in
Inner Leg Curve
WHEEL SPECS
Wheels / RimsFront Wheel :   Light alloy, Cast and machined, 3.50 x 17
 Rear Wheel:    Light alloy, Cast and machined, 8.00 x 17
Front TyrePirelli Diablo Rosso II, 120/70 ZR17
Rear Tyre Pirelli Diablo Rosso II 240/45 ZR17
Front Wheel Travel  120 mm / 4.7 in
Rear Wheel Travel110 mm / 4.33 in
Rake:30 Deg.
Trail130 mm / 5.1 in
FUEL SYSTEM
Fuel Capacity18 Litres / 4.75 US gal
Fuel Reserve
Fuel Consumption
ADDITIONAL
Top Speed150 mph (est)
Instrumentation
Standard Equipment
Showing entries (filtered from total entries)

Video Courtessy of AutoMotoTube


Ducati enters the cruiser world and does so in its very own way, presenting a real cruiser but one that boasts the design, technicall content and performance that is typical of Ducati bikes.


The XDiavel is “low speed excitement”, where the relaxed low-speed riding is typical of the cruiser world, while the excitement and adrenalin of sports riding is unmistakeably  Ducati.


The X in XDiavel represents precisely that: Two apparently different, distant worlds that come together in one unique bike, a synthesis
 in which both are complete, without compromise.



The new XDiavel is the meeting of Italian experience and crusier culture,performance that merges with ergonomics.

The star is the colour black, and its symbolic meanings, long since used as opposing halves with regard to personality, mystery, strength and elegance.



Long, low, muscular, with modern shapes and technologically cutting-edge components. But above all, sexy.

This is how Ducati designers envisaged the XDiavel when they started work on the initial sketches.


A bike that combines absolute style with cutting-edge technology.

A bike that projects the concept of  Cruiser into modern times, towards the future, a true  Technocruiser.
