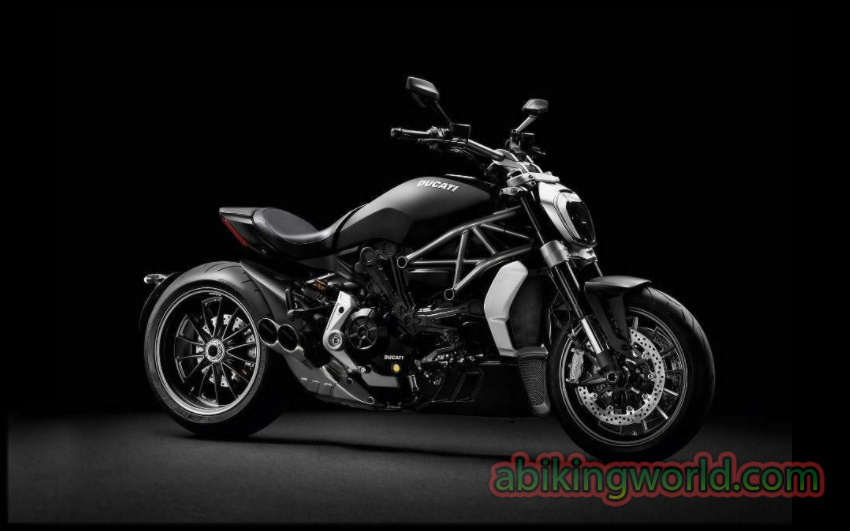

Ducati X Diavel 2016 FACTORY SPECIFICATIONS

Ducati X Diavel

Ducati X Diavel FACTORY SPECIFICATIONS

MODELDucati XDiavel
ENGINE TYPEFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin, 4 Desmodromically actuated valves per cylinder,
dual spark
Year2016
Displacement / Capacity 1262 cc / 77 cu in
Bore X Stroke106 x 71.5 mm
Compression Ratio13.0:1
Cooling SystemLiquid Cooled
Max Power114.7 kW / 156 hp @ 9500 rpm
Max Torque128.9 Nm / 13.1 kgf-m / 95 lb-ft @ 5000 rpm
IgnitionElectronic
Induction
Start System Electric
TRANSMISSION SPECS
Lubrication
Gear Box6 Speed
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Primary / Final DriveFinal Drive :      Belt; Front sprocket Z28; Rear sprocket Z80
Primary Drive :  Straight cut gears, 1,84:1 ratio
Secondary drive
Gear Ratio1st 37:15 /     2nd 30:17 /     3rd 27:20 /     4th 24:22 /     5th 23:24 /    6th 22:25
CHASSIS SPECS

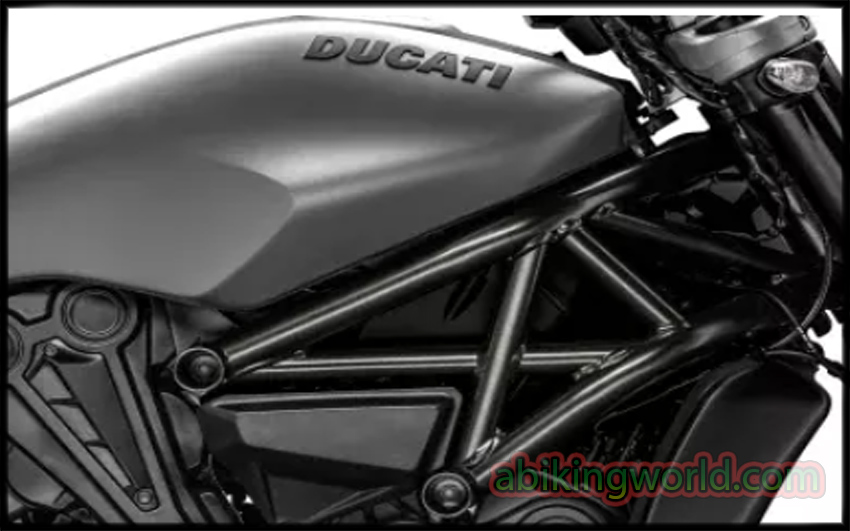

FrameTubular steel trellis frame
Front SuspensionAdjustable Ø 50 mm (Ø 1,97 in) usd fork with DLC treatment

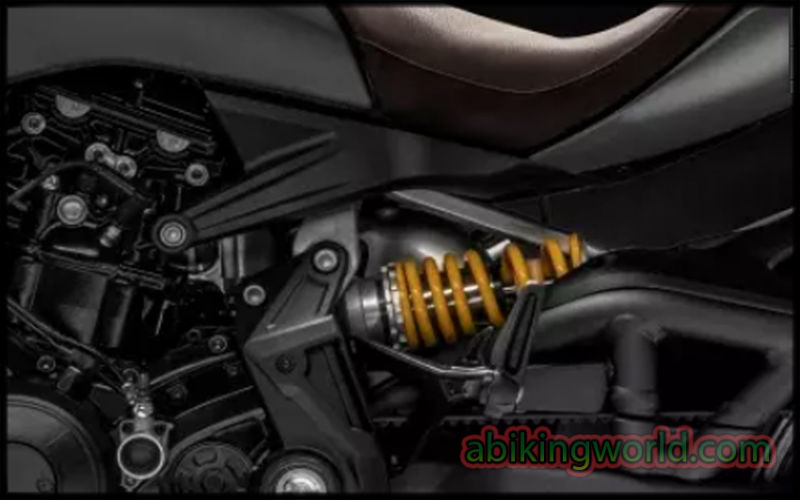

Rear SuspensionSingle shock absorber, Adjustable preload and rebound, Remote reservoir.  Single sided swingarm, Cast/trellis frame
BrakesFront Brakes:    2 x 320 mm (12,60 in) Semifloating discs, Radial callipers and radial master cylinder. BOSCH cornering ABS as standard equipment

Rear Brakes :    265 mm (10,43 in) Disc, 2-piston floating calliper. BOSCH cornering ABS as standard equipment

ABS:                     BOSCH cornering ABS as standard equipment
Traction Management
Exhaust SystemBOSCH fuel injection system, Full ride-by-wire system, DEQ 56 oval throttle bodies
DIMENSION SPECS
Overall Length
Seat Height755 mm / 29.7 in
Overall Height
Overall Width
Overall WeightDry Weight -   220 kg / 485 lbs
Wet Weight -  247 kg / 545 lbs
Wheelbase1615 mm / 63.6 in
Inner Leg Curve
WHEEL SPECS
Wheels / RimsFront Wheel :   Light alloy, Cast and machined, 3.50 x 17
 Rear Wheel:    Light alloy, Cast and machined, 8.00 x 17
Front TyrePirelli Diablo Rosso II, 120/70 ZR17
Rear Tyre Pirelli Diablo Rosso II 240/45 ZR17
Front Wheel Travel  120 mm / 4.7 in
Rear Wheel Travel110 mm / 4.33 in
Rake:30 Deg.
Trail130 mm / 5.1 in
FUEL SYSTEM
Fuel Capacity18 Litres / 4.75 US gal
Fuel Reserve
Fuel Consumption
ADDITIONAL
Top Speed150 mph (est)

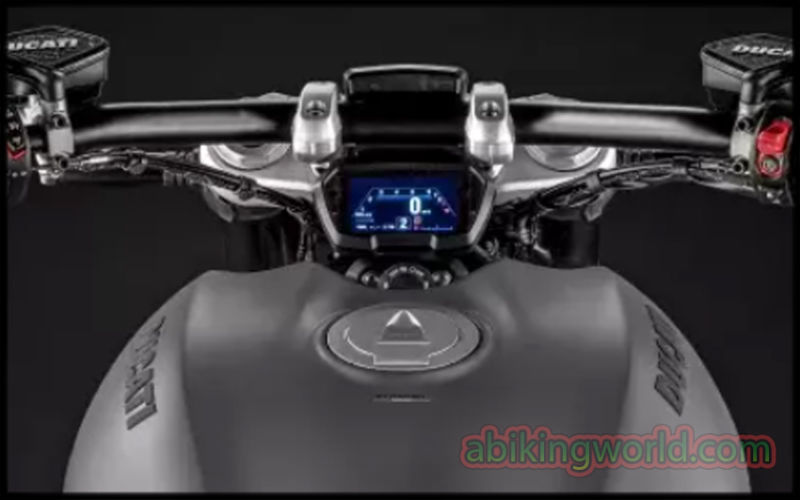

Instrumentation
Standard Equipment
