Ducati Monster 821 2015  FACTORY SPECIFICATIONS

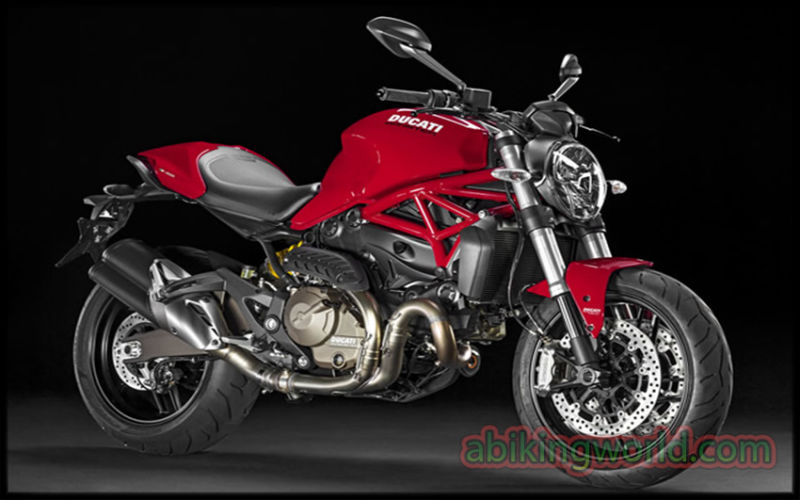

Ducati Monster 821  2014 - 2015

Ducati Monster 821  FACTORY SPECIFICATIONS

MODELDucati Monster 821
ENGINE TYPEliquid-cooled, Testastretta 11-degree L-Twin, 4 Desmodromically actuated valves per cylinder
Year2014 - 2015
Displacement / Capacity 821 cc / 50.1 cu-in
Bore X Stroke88 x 67.5 mm
Compression Ratio12.8:1
Cooling System
Max Power82.4 kW / 112 hp @ 9250 rpm
Max Torque89.4 Nm / 9.1 kgf-m / 65.8 lb-ft @ 7750 rpm
IgnitionMarelli Electronic
InductionElectronic fuel injection system, 53mm throttle bodies with full Ride by Wire
Start SystemElectric
TRANSMISSION SPECS
Lubrication
Gear Box6 Speed
ClutchAPTC multi-disc wet clutch with control cable
Primary / Final DriveFinal Drive :          Chain, Front sprocket 15, Rear sprocket 46
Primary Drive :   Straight cut gears, ratio 1.85:1
Secondary drive
Gear Ratio1st 37/15      2nd  30/17      3rd 28/20      4th 26/22      5th 24/23      6th  23/24
CHASSIS SPECS

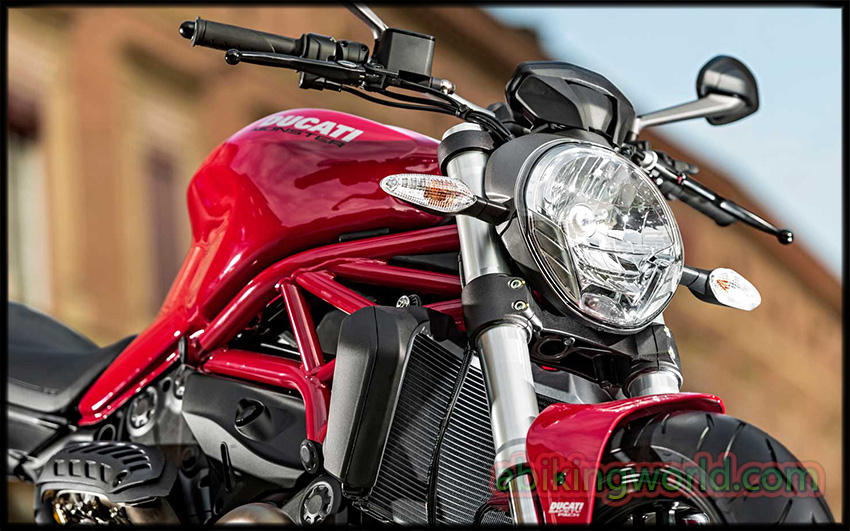

FrameTubular steel Trellis frame attached to the cylinders head
Front SuspensionKayaba 43mm upside-down fork
Rear SuspensionProgressive linkage with adjustable monoshock. Aluminum double-sided swingarm
BrakesFront Brakes:     2 x 320 mm semi-floating discs,  radially mounted Monobloc Brembo M4-32 callipers, 4-pistons, axial pump .

Rear Brakes :     Single  245mm disc, 2-piston floating calliper .

ABS:                     Standard
Traction Management

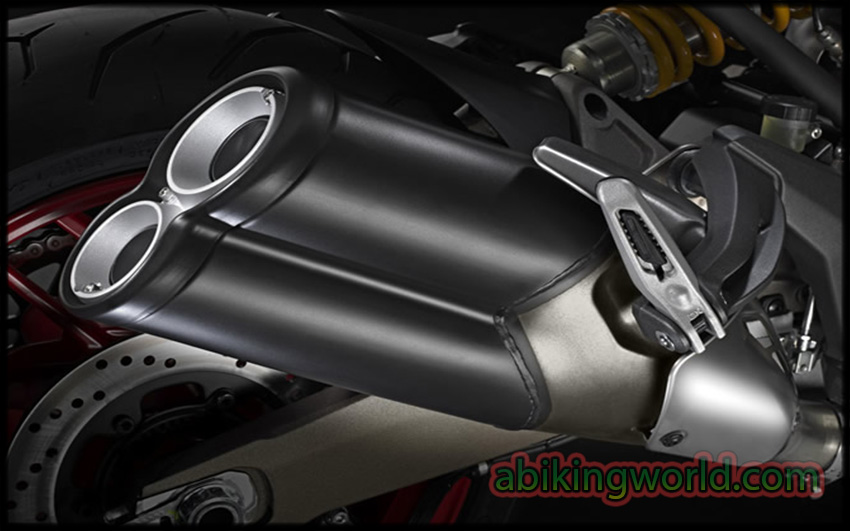

Exhaust SystemStainless steel muffler and aluminium and cap.  lightweight 2-1 system with catalytic converter with 2 lambda probes
DIMENSION SPECS
Overall Length2169 mm / 85.4 in
Seat Height785 mm - 810 mm / 30.9 in - 31.9 in
Overall Height
Overall Width800 mm / 31.5 in
Overall WeightDry Weight -    179.5kg / 395.7 lbs
Wet Weight -   205.5kg / 453 lbs
Wheelbase1480 mm / 58.3 in
Inner Leg Curve
WHEEL SPECS
Wheels / RimsFront Wheel :   10-spoke in light alloy, 3.50  x  17"
 Rear Wheel:     10-spoke in light alloy, 5.50 x 17"
Front Tyre120/70 ZR 17 Pirelli Diablo Rosso II
Rear Tyre180/60 ZR17 Pirelli Diablo Rosso II
Front Wheel Travel130 mm / 5.1 in
Rear Wheel Travel140 mm / 5.5 in
Rake:24.3°
Trail93.2mm / 3.7in
FUEL SYSTEMEFI
Fuel Capacity17.5 Litres  / 4.6 US gal
Fuel Reserve
Fuel Consumption45 mpg / 19.1 km/l
ADDITIONAL
Top Speed140 mph / 225 kph

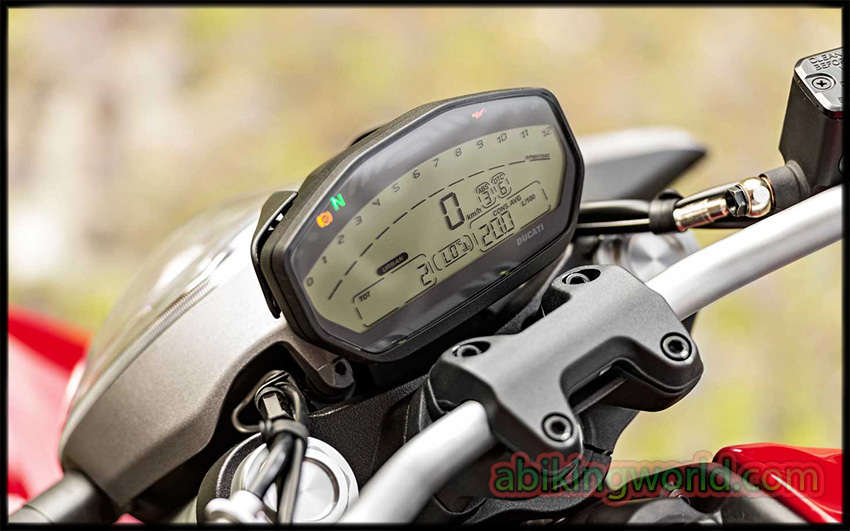

Instrumentation
Standard Equipment
Showing entries (filtered from total entries)

Video Courtessy of Cycle Torque


A bold and essential form shaped by a unique history, combined with the unmistakable Ducati roar released from the 112hp Testastretta 11° engine, are hallmarks of the Monster 821.


Trellis frame, Riding Modes, and the Ducati Safety Pack are the elements that bring you unprecedented riding pleasure. Monster 821. Designed according to your desires, to be even more Monster.

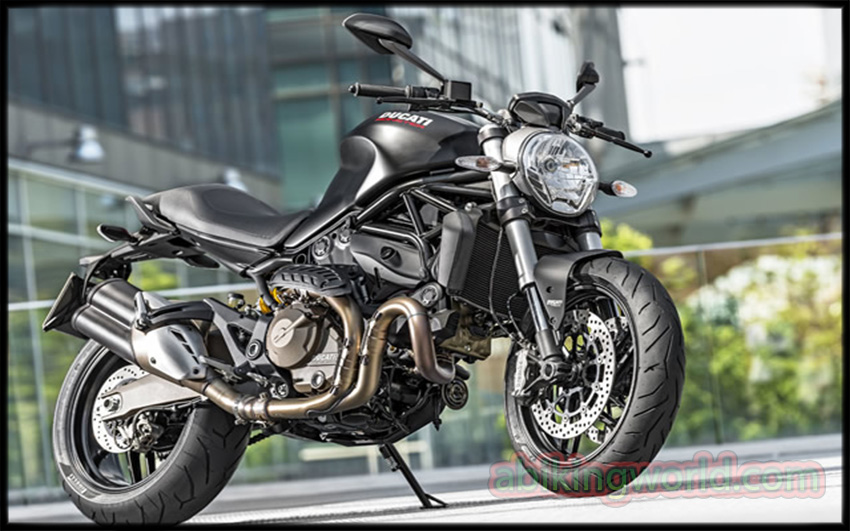

The allure of Dark style and the unmistakable Ducati roar released from the 112hp Testastretta 11° engine are hallmarks of the Monster 821 Dark.



Trellis frame,  Riding Modes, and the Ducati Safety Pack are the elements that bring you unprecedented riding pleasure. Monster 821 Dark.


Designed according to your desires, to be even more Monster.


Ducati announces the brand new Monster 821 Borgo Panigale (Bologna), 28 May, 2014 –  Ducati announces the brand new Monster 821, a mid-size entry for the third generation of the iconic naked model and the latest chapter in the Bologna-built motorcycle’s famous story.


Underlining Ducati’s strong association to the Bologna region, the company has chosen to release the first images of the new model portrayed in typical Bolognese ambience.


Following the successful unveiling of the new generation Monster 1200 at the Milan International Motorcycle show in November, Ducati now introduces the Monster 821, a mid-size version of the exciting new model and the latest  entry to the world of Monster.
