Ducati Monster 797 2020  FACTORY SPECIFICATIONS

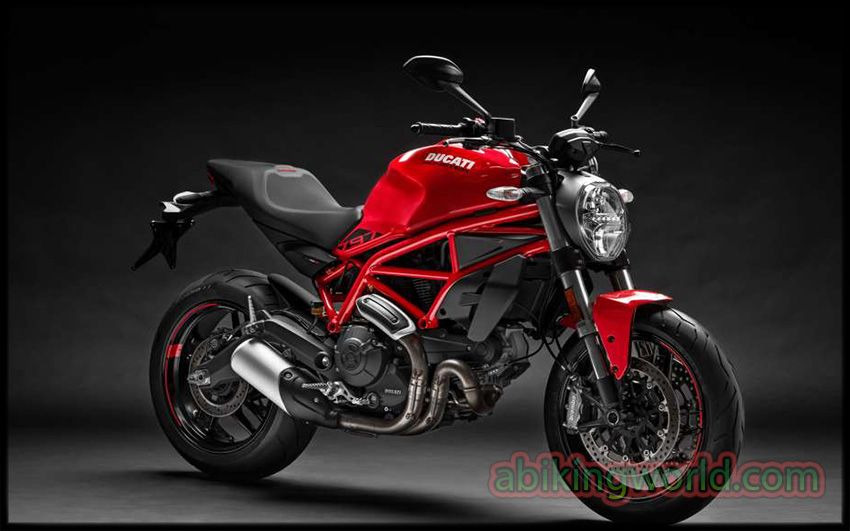

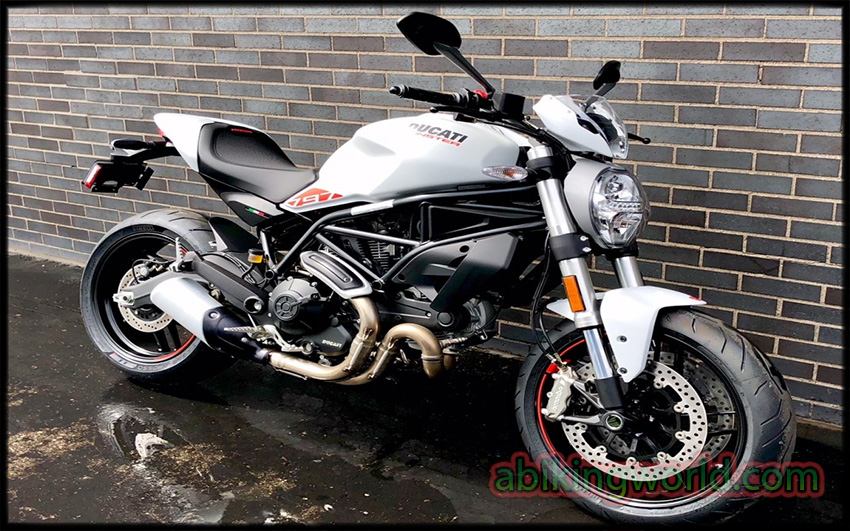

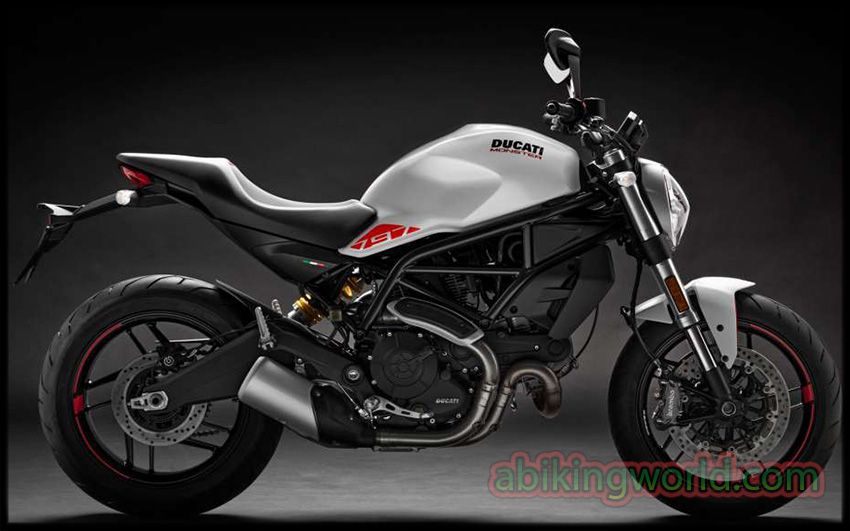

Ducati Monster 797 2020

Ducati Monster 797  FACTORY SPECIFICATIONS

MODELDucati Monster 797
ENGINE TYPEL-Twin, 2 Desmodromically actuated valves per cylinder, Air cooled
Year2020
Displacement / Capacity 803 cc / 49.0 cu in
Bore X Stroke88mm x 66 mm
Compression Ratio11.0:1
Cooling SystemAir Cooled
Max Power73 hp (54 kW) @ 8250 rpm
Max Torque49 lb-ft (67 Nm) @ 5750 rpm
IgnitionElectronic fuel injection system, Ø 50 throttle bodies
Induction
Start SystemElectric
TRANSMISSION SPECS
Lubrication
Gear Box6 Speed
ClutchAPTC wet multiplate clutch with mechanical control
Primary / Final DriveFinal Drive :      Chain. Front Sprocket Z15, Rear Sprocket Z46
Primary Drive :  Straight Cut Gears,      Ratio   1.85:1
Secondary drive
Gear Ratio1st 32/13      2nd 30/18      3rd 28/21      4th 26/23      5th 22/22       6th 24/26
CHASSIS SPECS
FrameTubular steel trellis
Front SuspensionØ 43 Kayaba usd fork, 5.12 in. travel
Rear SuspensionSachs monoshock, Pre-load and rebound adjustable
BrakesFront Brakes:    2 x Ø 320mm semi-floating discs, radially mounted monoblock Brembo M4.32 callipers, 4-piston, axial pump

Rear Brakes :     Ø 245mm disc, 1-piston calliper

ABS:                      Bosch ABS Standard Equipment
Traction Management
Exhaust System2-1 system with catalytic converter and two lambda probes, Single stainless steel muffler with aluminum cover
DIMENSION SPECS
Overall Length
Seat Height805 mm / 31.6 in
Overall Height
Overall Width
Overall WeightDry Weight -   175 kg / 386 lbs
Wet Weight -   193 kg / 425 lbs
Wheelbase1435 mm / 56.5 in
Inner Leg Curve
WHEEL SPECS
Wheels / RimsFront Wheel :   10-spoke light alloy, 3.50” x 17”
 Rear Wheel:     10-spoke light alloy, 5.50” x 17”
Front TyrePirelli Diablo Rosso II 120/70 ZR17
Rear TyrePirelli Diablo Rosso II 180/55 -ZR17
Front Wheel Travel 130 mm / 5.1 in
Rear Wheel Travel150 mm / 5.91 in
Rake:24°
Trail90 mm / 3.54 in
FUEL SYSTEM
Fuel Capacity16.5 Litres / 4.3 US gal
Fuel Reserve
Fuel Consumption53 mpg / 22.5 km/l
ADDITIONAL
Top Speed120 mph / 193.121 kph

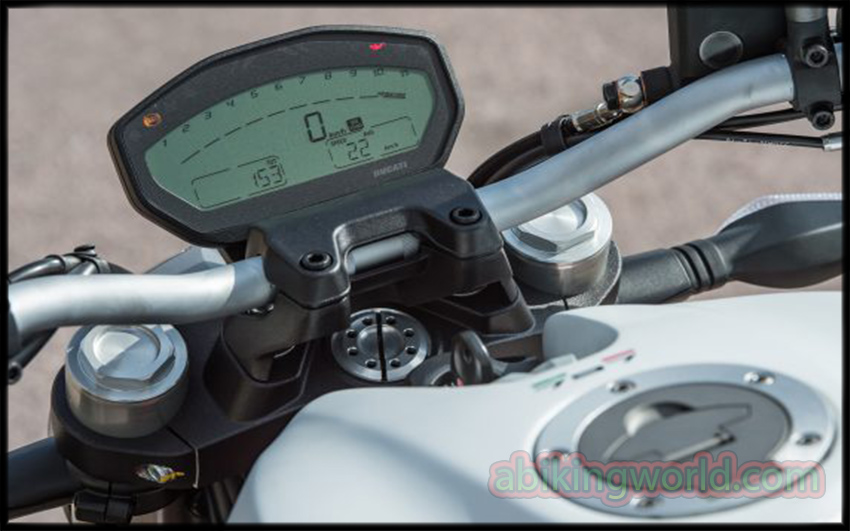

InstrumentationLCD display
Standard EquipmentBosch ABS, LED position light and tail light, USB power socket,
ColoursWhite, Red, Black
Showing entries (filtered from total entries)

Video Courtessy of Argyll Motorsports & Marine


The Monster 797 is even more unmistakeable. The Monster 797 boasts a distinctive look, thanks to standard equipment that includes the front fairing and the passenger seat cover, which both match the tank and front mudguard.


This equipment enriches the lines of the Monster and improves riding comfort thanks to the front fairing that optimises the rider’s aerodynamic protection.

The Monster 797 is the ideal bike for those who want to enter the world of Ducati for the first time. As sporty and essential as any Monster, it offers everything you need for a fun ride that is also easy and intuitive. In addition, the new graphics give the Monster 797 unique personality and style.


The Monster 797 design perfectly integrates wide handlebar, tank, trellis frame, engine and double-sided swinging arm – an agile and dynamic line that communicates sportiness and generates confidence from first glance.


The Desmodue twin, with 73 hp and 6,8 kgm of torque, ensures riding enjoyment in maximum safety. The constant, fluid torque curve immediately instils confidence without creating any difficulty. Carefree fun is guaranteed!



Thanks to the new graphics the Monster 797 acquires a new, original style.
