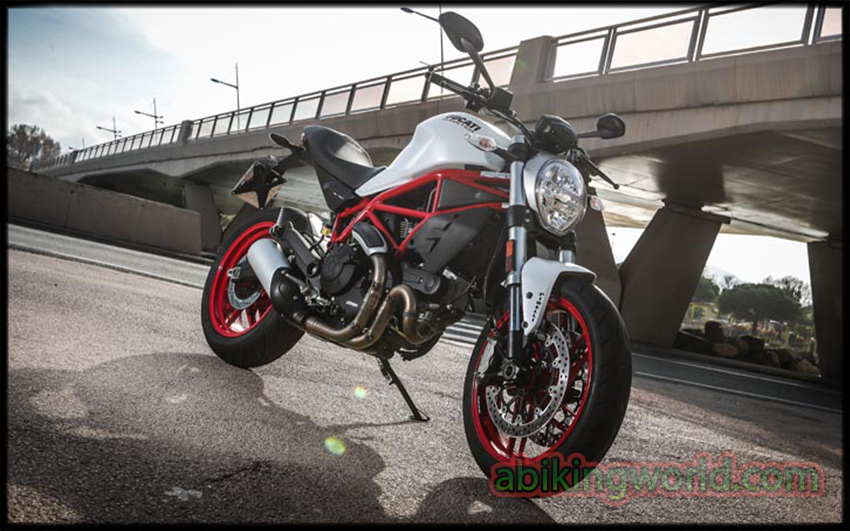

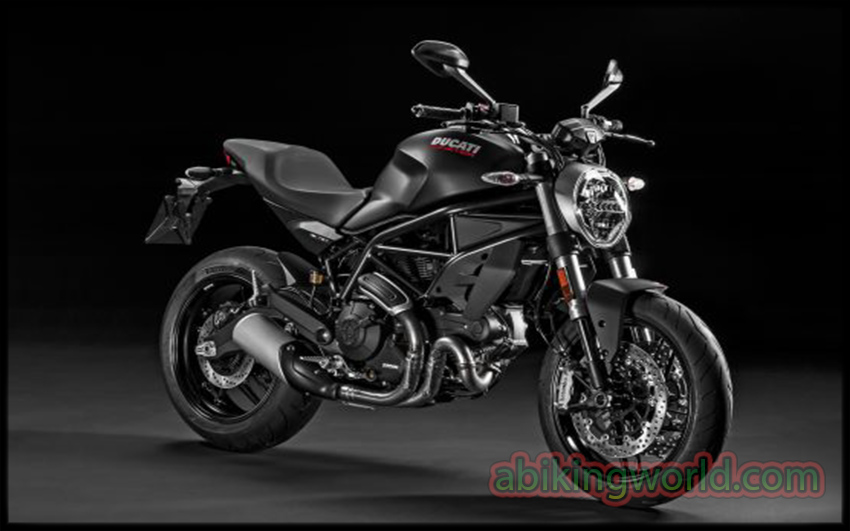

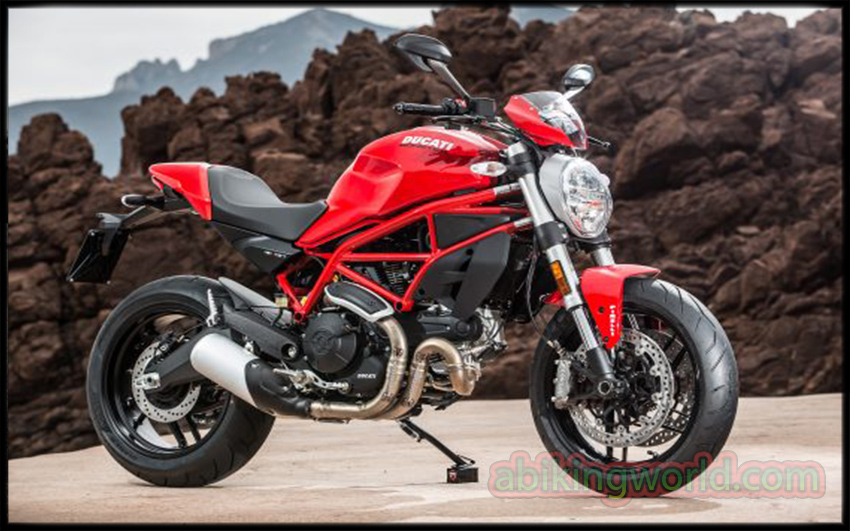

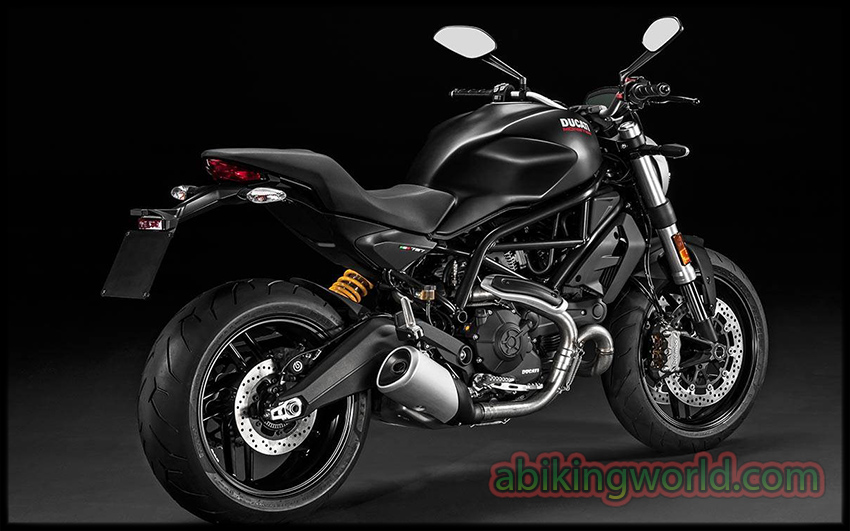

Ducati Monster 797 2017  FACTORY SPECIFICATIONS

Ducati Monster 797 2017 - 2018


MODELDucati Monster 797
ENGINE TYPEFour stroke, 90° “L” twin cylinder,  SOHC, desmodromic 2 valves per cylinder
Year2017 - 2018
Displacement / Capacity 803 cc / 49.0 cu in
Bore X Stroke88mm x 66 mm
Compression Ratio11.0:1
Cooling SystemAir Cooled
Max Power54.4 kW / 73 hp @ 8250 rpm
Max Torque68.9 Nm / 50.8 lb-ft @ 6250rpm
IgnitionElectronic fuel injection system, Ø 50 throttle bodies
Start SystemElectric
Gear Box6 Speed
ClutchAPTC wet multiplate with hydraulic control
Primary / Final DriveFinal Drive :      Chain, Front Sprocket Z15, Rear Sprocket Z46
Primary Drive :  Straight Cut Gears,      Ratio   1.85:1
Secondary drive
Gear Ratio1st 32/13      2nd 30/18      3rd 28/21      4th 26/23      5th 22/22       6th 24/26
FrameTubular steel trellis
Front SuspensionØ 43 Kayaba usd fork, 5.12 in. travel
Rear SuspensionSachs monoshock, Pre-load and rebound adjustable
BrakesFront Brakes:    2 x Ø 320mm semi-floating discs, radially mounted monoblock Brembo M4.32 callipers, 4-piston, axial pump
Rear Brakes :     Ø 245mm disc, 1-piston calliper

ABS:                      Bosch ABS Standard Equipment
Traction Management
Exhaust System 2-1 system with catalytic converter and two lambda probes, Single stainless steel muffler with aluminum cover.
Overall Length
Seat Height805 mm / 31.6 in
Overall Height
Overall Width
Overall WeightDry Weight -   175 kg / 386 lbs
Wet Weight -   193 kg / 425 lbs
Wheelbase1435 mm / 56.5 in
Inner Leg Curve
Wheels / RimsFront Wheel :   10-spoke light alloy, 3.50” x 17”
 Rear Wheel:     10-spoke light alloy, 5.50” x 17”
Front TyrePirelli Diablo Rosso II 120/70 ZR17
Rear TyrePirelli Diablo Rosso II 180/55 -ZR17
Front Wheel Travel 130 mm / 5.1 in
Rear Wheel Travel150 mm / 5.91 in
Trail90 mm / 3.54 in
FUEL SYSTEMElectronic fuel injection system, Ø 50 throttle bodies
Fuel Capacity16.5 Litres / 4.3 US gal
Fuel Reserve
Fuel Consumption53 mpg / 22.5 km/l
Top Speed120 mph / 193.121 kph

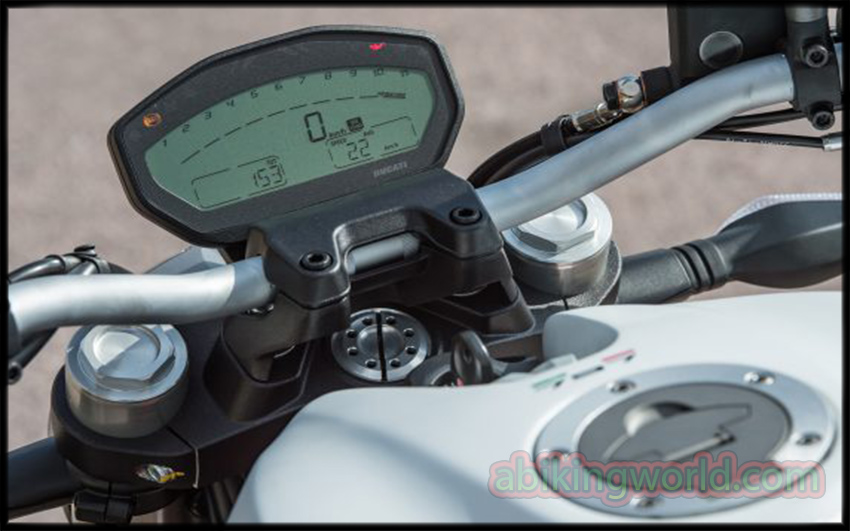

InstrumentationLCD display
Standard EquipmentBosch ABS, LED position light and tail light, USB power socket, DMS ready
ColoursWhite, Red, Black
Showing entries (filtered from total entries)

Video Courtessy of Chaseontwowheels

Yet another Ducati’s launched at EICMA is the air-cooled Monster 797 , bringing back Bologna’s 803cc two-valve engine to the Monster family.

Ducati has gone back to the Monster’s original roots of an engin on wheels and not much else with the 797, stripping away the bodywork that’s been  gradually making its way onto Monsters in the last 10 years.

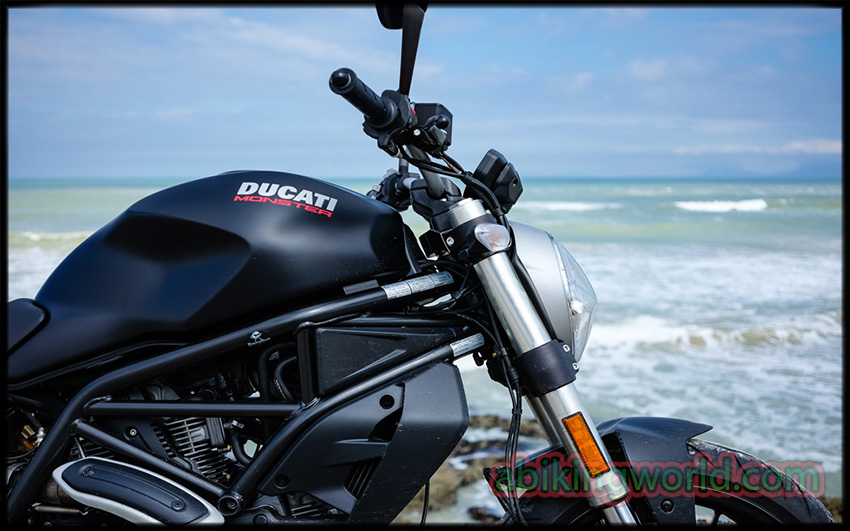

The 797 is about as naked as it gets, with attention once again focused on the gas tank, the design of which has become a trademark in itself and a big money earner for the brand.

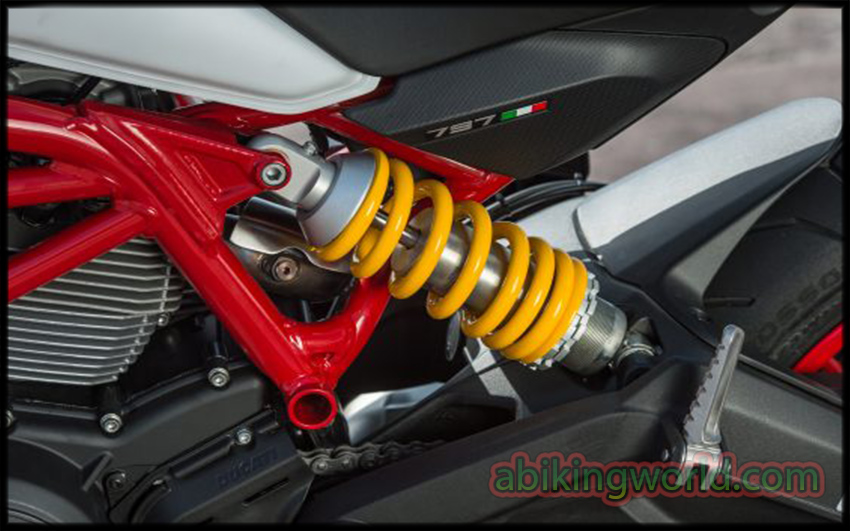

A budget-focused motorcycle, the Ducati Monster 797 comes with a double-sided swingarm, non-adjustable Kayaba 43mm forks, a Sachs rear shock  with adjustable pre-load and rebound only, and a banana-style seat.

The Monster 797 mounts twin Brembo M432, 4-piston monoblock calipers and 320mm  discs to the front of the bike, and a single 245mm disc and Brembo caliper to the rear. Both ends feature Bosch ABS.

Pirelli Diablo Rosso II dual-compound tires are mounted to 10-spoke alloy wheels in 120/70-17 and 180/55-17 front and rears sizes, respectively.

The Monster 797 features a traditional tubular Ducati  trellis frame, while the headlight, indicators, and LCD instrumentation are characterized by contemporary design and current technological trends.

 The Monster 797 weighs 193 kg / 425 lbs wet, and comes standard with dual-channel ABS, courtesy of Bosch.
