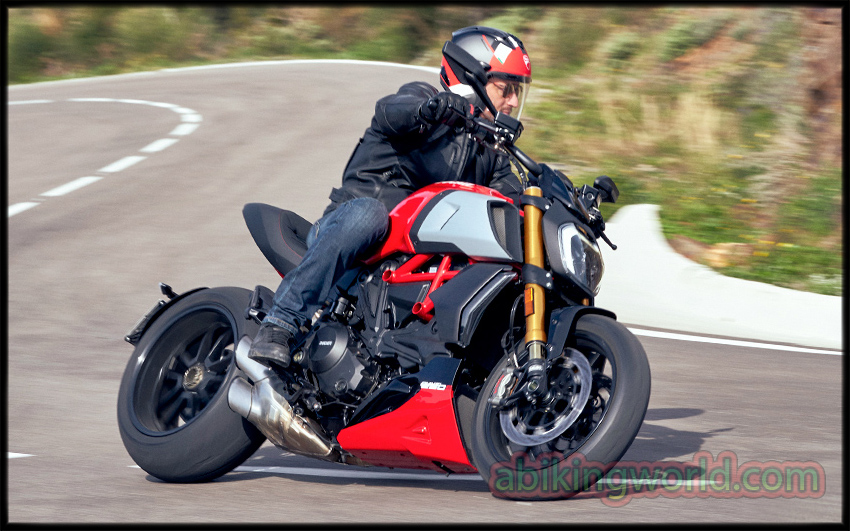

DUCATI DIAVEL 1260 S 2020 FACTORY SPECIFICATIONS

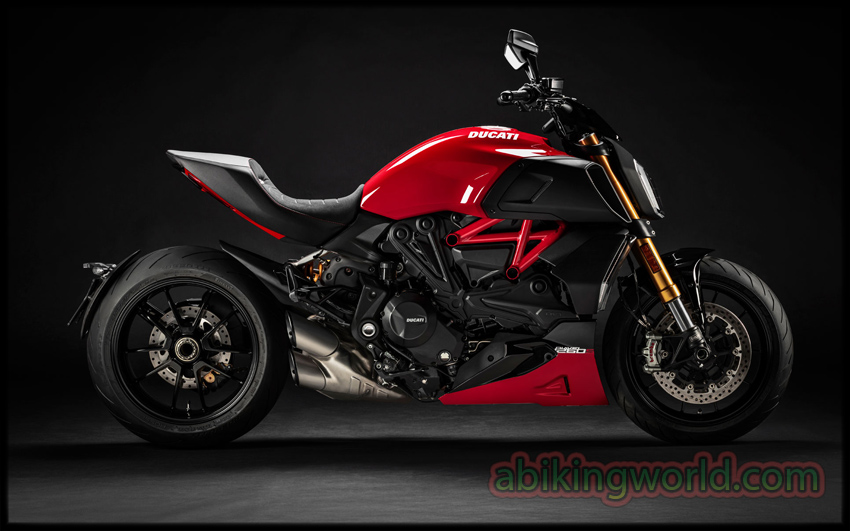

DUCATI DIAVEL 1260 S

DIAVEL 1260 FACTORY SPECIFICATIONS

MODELDUCATI DIAVEL 1260 S
ENGINE TYPEFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin,
4 Desmodromically actuated valves per cylinder, dual spark
Year2020
Displacement / Capacity 1262 cc / 77 cu in
Bore X Stroke106 x 71.5 mm
Compression Ratio13.0:1
Cooling SystemLiquid Cooled
Max Power159 hp / 117 kW @ 9500 rpm
Max Torque128.9 Nm / 95 lb-ft @ 7500 rpm
IgnitionElectronic
InductionElectronic fuel injection system, Øeq 56 mm elliptical throttle bodies with Ride-by-Wire system
Start SystemElectric
TRANSMISSION SPECS
Lubrication
Gear Box6-Speed
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Primary / Final DriveFinal Drive :   Chain, Front sprocket Z15, Rear sprocket Z43
Primary Drive :   Straight cut gears, Ratio 1.84:1
Secondary drive
Gear Ratio1st    37/15,      2nd    30/17,      3rd    27/20,      4th    24/22,      5th    23/24,     6th    22/25
CHASSIS SPECS
FrameTubular steel trellis frame
Front Suspension48 mm USD Öhlins adjustable fork, TiN treatment
Rear SuspensionÖhlins fully adjustable monoshock, Aluminium casted single-sided swingarm
BrakesFront Brakes:     2 x 320mm semi-floating discs, Radially mounted Brembo monobloc 4-piston M4.32 callipers, PR18/19 radial
                                master cylinder.

Rear Brakes :   Single  265mm disc, 2-piston Brembo floating calliper

ABS:                       Cornering ABS Evo
Traction Management
Exhaust SystemStainless steel pipes and single muffler with twin tail pipes, Catalytic converter and 2 lambda probes
DIMENSION SPECS
Overall Length
Seat Height780 mm / 30.7 in
Overall Height
Overall Width
Overall WeightDry Weight -    214 kg / 481 lbs
Wet Weight -    244 kg / 538 lbs
Wheelbase1600 mm / 63.0 in
Inner Leg Curve
WHEEL SPECS

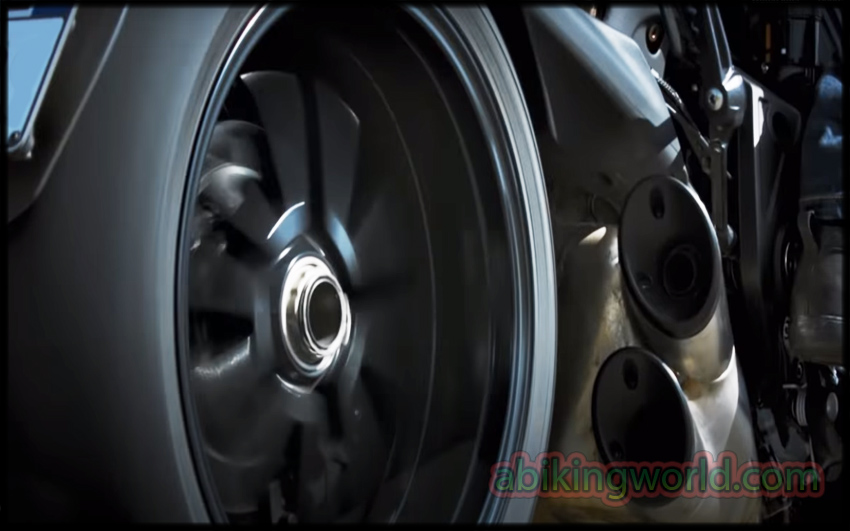

Wheels / RimsFront Wheel :    Light alloy
 Rear Wheel:      Light alloy
Front Tyre120/70 ZR17 Pirelli Diablo Rosso II
Rear Tyre240/45 ZR17 Pirelli Diablo Rosso II
Front Wheel Travel120 mm / 4.7 in
Rear Wheel Travel110 mm / 4.33 in
Rake27°
Trail120 mm / 4.7 in
FUEL SYSTEM

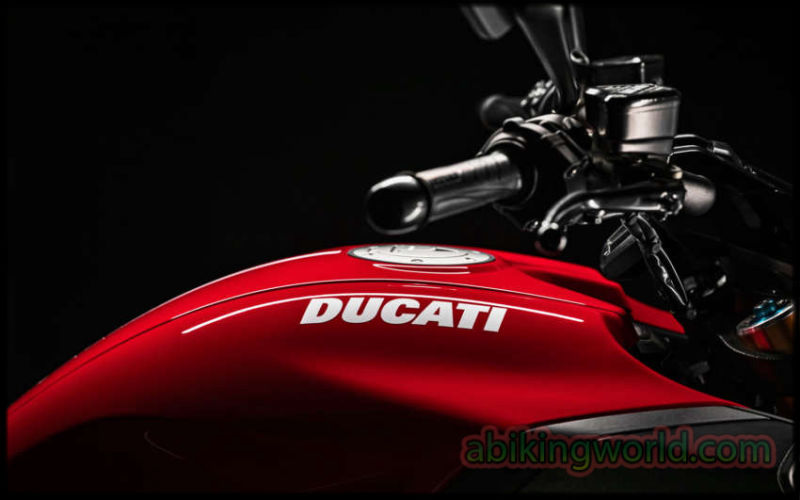

Fuel Capacity17 Litres / 4.5 US gal
Fuel Reserve
Fuel Consumption43.5 mpg (5.4 l/100 km)
ADDITIONS

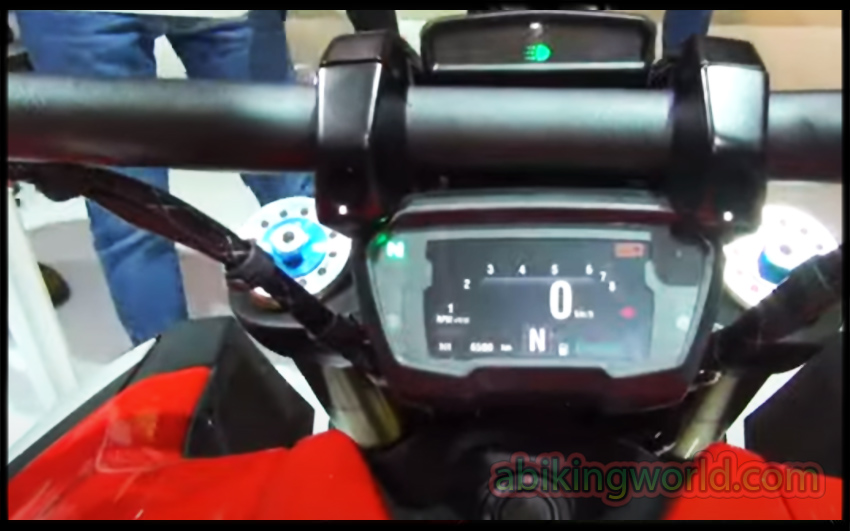

Instrumentation3.5 in TFT colour display and dedicated warning light display
EquipmentSafety Equipment Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS Evo, Ducati Traction Control Evo DTC),
Ducati Wheelie  Control Evo (DWC)
Cruise control, Ducati Power Launch Evo (DPL), Hands-Free, Backlit handlebar switches, 3.5 in TFT colour display, Full LED lighting system, Self cancelling  turn indicators
Top Speed169 mph (est)
Showing entries (filtered from total entries)

Video Courtessy of hirudov


Vastly redesigned in 2019, the Ducati Diavel was updated with a new exhaust, reduced rake, new 63-inch wheelbase, a boost in power, with the “most

sophisticated edition of the Testastretta L-twin, the 1,260cc DVT (Desmodromic Variable Timing)”.

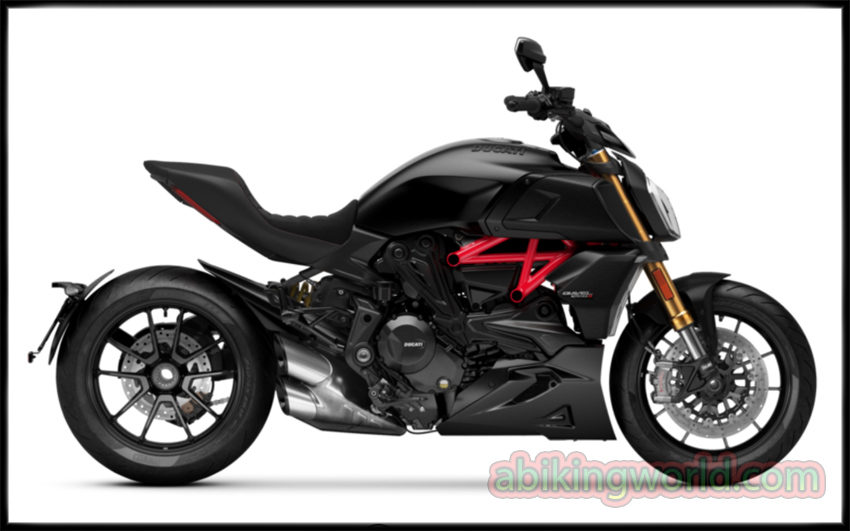

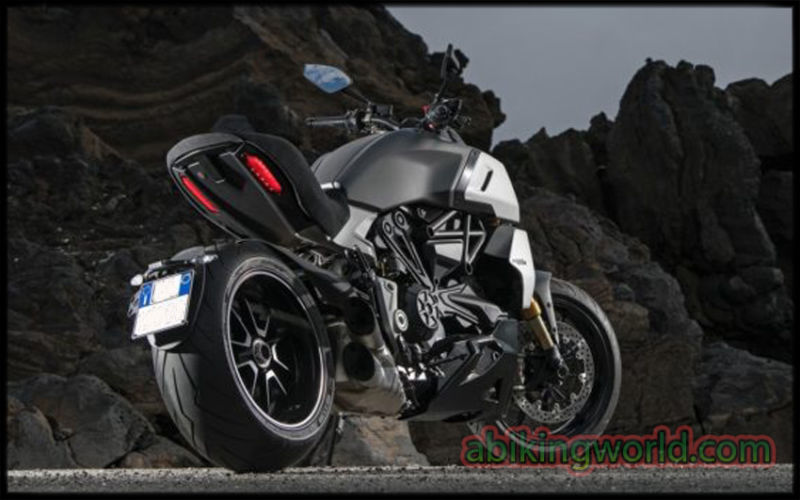

Now for 2020, you will find a new colorway for both models, total black for the base and Ducati Red with white graphics and alternating black elements.


The sportier S version of the Diavel 1260 Features include


Fully adjustable Öhlins suspension at both front and rear,

Dedicated wheels and


An even higher-performance braking system.
