Motor Bike Specifications | Motor Bike Specs | 2020 DUCATI DIAVEL 1260 Factory Specs

DIAVEL 1260 FACTORY SPECIFICATIONS

Search:

MODEL	DUCATI DIAVEL 1260
ENGINE TYPE	Four stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin, 4 Desmodromically actuated valves per cylinder, dual spark
Year	2020
Displacement / Capacity	1262 cc / 77 cu in
Bore X Stroke	106 x 71.5 mm
Compression Ratio	13.0:1
Cooling System	Liquid Cooled
Max Power	159 hp / 117 kW @ 9500 rpm
Max Torque	128.9 Nm / 95 lb-ft @ 7500 rpm
Ignition	Electronic
Induction	Electronic fuel injection system, Øeq 56 mm elliptical throttle bodies with Ride-by-Wire system
Start System	Electric
TRANSMISSION SPECS
Lubrication
Gear Box	6-Speed
Clutch	Slipper and self-servo wet multiplate clutch with hydraulic control
Primary / Final Drive	Final Drive : Chain, Front sprocket Z15, Rear sprocket Z43 Primary Drive : Straight cut gears, Ratio 1.84:1
Secondary drive
Gear Ratio	1st 37/15, 2nd 30/17, 3rd 27/20, 4th 24/22, 5th 23/24, 6th 22/25
CHASSIS SPECS
Frame	Tubular steel trellis frame
Front Suspension	50mm USD adjustable fork
Rear Suspension	Single shock absorber, adjustable preload and rebound, remote reservoir. Single sided cast/trellis frame swingarm, natural anodized and brushed swingarm
Brakes	Front Brakes: 2 x 320mm semi-floating discs, Radially mounted Brembo monobloc 4-piston M4.32 callipers, PR18/19 radial master cylinder. Rear Brakes : Single 265mm disc, 2-piston Brembo floating calliper ABS: Cornering ABS Evo
Traction Management
Exhaust System	Stainless steel pipes and single muffler with twin tail pipes, Catalytic converter and 2 lambda probes
DIMENSION SPECS
Overall Length
Seat Height	780 mm / 30.7 in
Overall Height
Overall Width
Overall Weight	Dry Weight - 214 kg / 481 lbs Wet Weight - 244 kg / 538 lbs
Wheelbase	1600 mm / 63.0 in
Inner Leg Curve
WHEEL SPECS
Wheels / Rims	Front Wheel : Light alloy Rear Wheel: Light alloy
Front Tyre	120/70 ZR17 Pirelli Diablo Rosso II
Rear Tyre	240/45 ZR17 Pirelli Diablo Rosso II
Front Wheel Travel	120 mm / 4.7 in
Rear Wheel Travel	110 mm / 4.33 in
Rake	27°
Trail	120 mm / 4.7 in
FUEL SYSTEM
Fuel Capacity	17 Litres / 4.5 US gal
Fuel Reserve
Fuel Consumption	43.5 mpg (5.4 l/100 km)
ADDITIONS
Instrumentation	3.5 in TFT colour display and dedicated warning light display
Equipment	Safety Equipment Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS Evo, Ducati Traction Control Evo DTC), Ducati Wheelie Control Evo (DWC) Cruise control, Ducati Power Launch Evo (DPL), Hands-Free, Backlit handlebar switches, 3.5 in TFT colour display, Full LED lighting system, Self cancelling turn indicators
Top Speed	169 mph (est)

Showing entries (filtered from total entries)

Unconventional, unique, unmistakeable. As soon as it was launched at EICMA 2010, the Diavel stunned with its personality, design, sport naked handling and thoroughbred engine.

The second-generation Diavel 1260 remains faithful to the original spirit of that incredibly special bike, drawing on its key styling elements yet bringing

them decidedly up to date.

Now, the Diavel has more assertive outlines and higher performance, is more fun on mixed-road routes and even more comfortable, for rider and passenger alike.

Its sport naked soul is magnified by a Testastretta DVT 1262 engine that combines breath-taking acceleration with the smooth low-rev power delivery that is ideal for everyday rides or longer-lasting tours.

An upgraded chassis set-up makes the Diavel 1260 more responsive on mixed-road routes while high grade technology and electronics provide braking performance on a par with that of a sport bike (and does so safely, thanks to Bosch Cornering ABS) and user-friendly engine performance control. Comfort levels for rider and passenger remain outstanding thanks to, first and foremost, an upright riding position and a

large, generously padded seat.

A sportier S version of the Diavel 1260 is also available. Features include fully adjustable Öhlins suspension at both front and rear, dedicated wheels and

an even higher-performance braking system.

This second-generation Diavel draws on the key aesthetic concepts of its predecessor and brings them up to date: on the Diavel 1260 styling hallmarks

include the forward-flung mass that gives the bike its aggressive stance, the streamlined tail and the prominent 240 mm rear tyre.

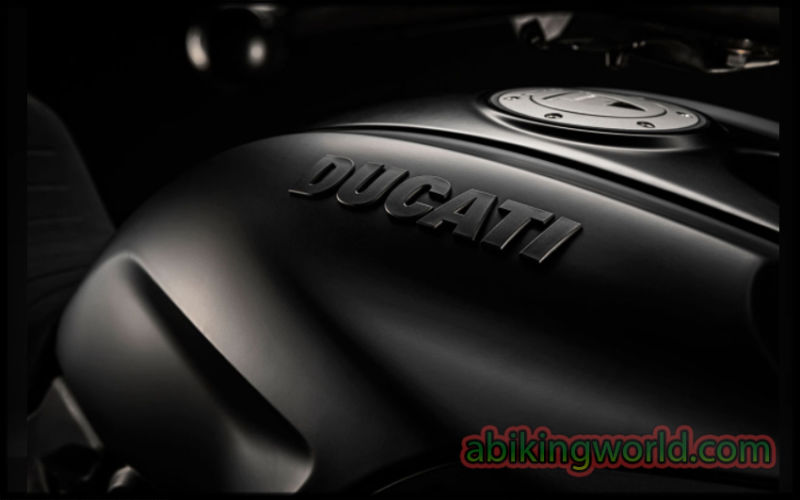

The three covers that make up the tank are made of sheet metal. These have been slimmed down in the seat contact zone to improve ergonomics for the rider.

Two large brushed aluminium air intakes, which connect up the tank via a differently coloured C-frame, provide additional character (again, the concept

derives from the first-generation Diavel).

The short, compact tail houses an extractable passenger grab rail and the lights, giving the back of the Diavel 1260 a lightweight sport look that contrasts sharply with the beefy front.

Another key Diavel 1260 trait consists of the water radiator side covers, these incorporate vertically arranged indicators that use “light blade”

technology, a feature that required an in- depth lighting design effort.

Embedded in the indicators is a transparent “blade”. This features graphics that, when the indicator comes on, generate a 3D effect that makes the Diavel 1260 instantly recognisable.

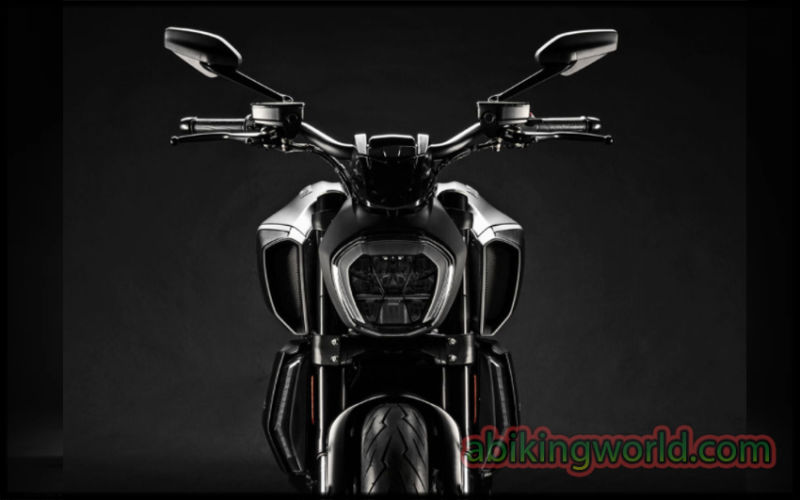

The modern headlight with its distinctive upside-down horseshoe-shape DRL (S version) merges perfectly with the smoke-tinted nose fairing that shields the instrumentation, making the front end of the Diavel 1260 strikingly assertive.

Engine and frame play a major side-on styling role thanks to inimitable uncluttered outlines. Once again, seamless integration of parts is evident in

the details: for example, the air intake for the horizontal cylinder belts, incorporated in the belly fairing, contains numerous electronic components and

acts as an oil radiator cover.

What’s more, the Thrilling Black Dark Stealth livery of the Diavel 1260 S offers an eye-catching contrast between the ‘total black’ look of the bike and the red frame at its centre, making the classic Ducati Trellis frame the aesthetic hub of the bike.
