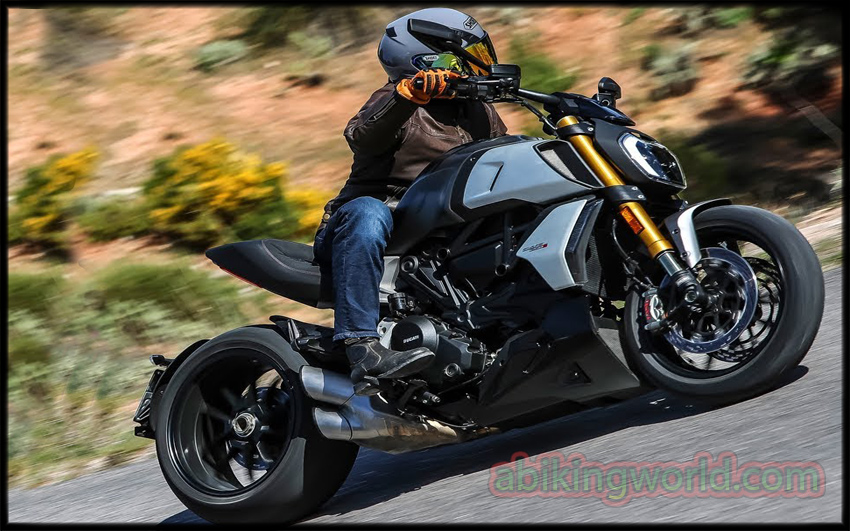

DUCATI DIAVEL 2019 FACTORY SPECIFICATIONS

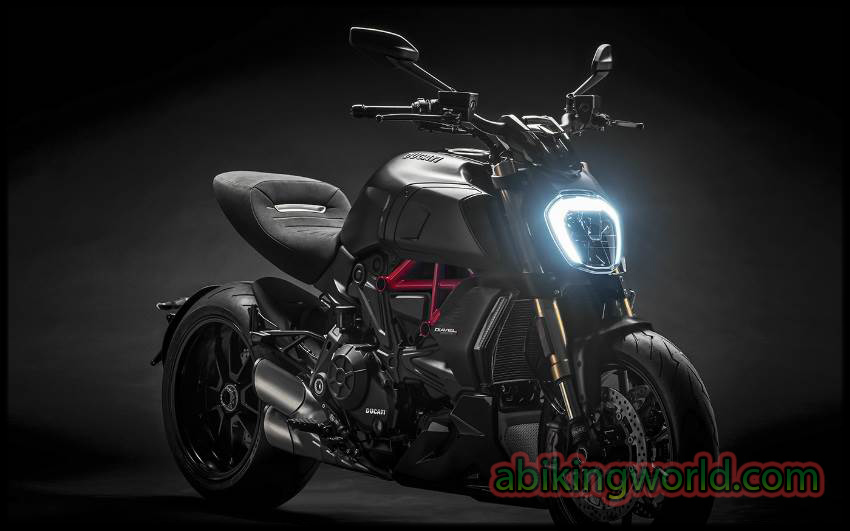

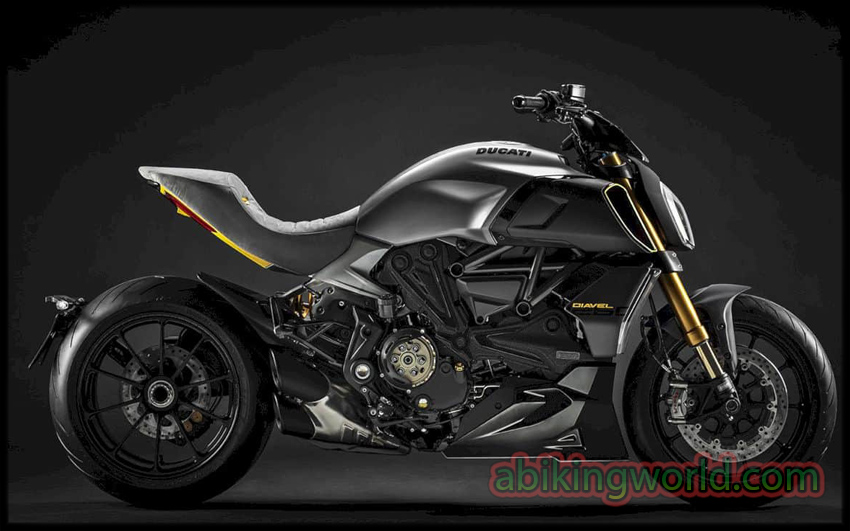

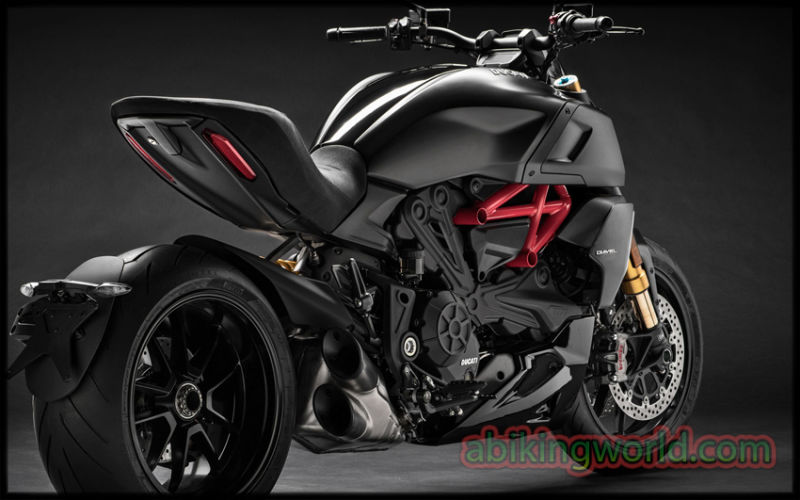

DUCATI DIAVEL 2019

DUCATI DIAVEL 1260


Powerful. Muscular. But also agile and effective between the curves for maximum riding enjoyment. The new Diavel 1260 combines the performance of a

maxi-naked with the ergonomics of a muscle cruiser. Its design reinterprets the Diavel style with a contemporary look and integrates perfectly the 159 HP

Testastretta DVT 1262 engine, beating heart of this new Diavel 1260.



Muscular lines and an imposing front bring out the strong and restless  personality of the new Diavel, featuring a long, slender rear with a 240 mm rear

wheel. The wide air inlets and the trellis frame complete the elegant picture as they support the engine, the true beating heart of this bike. The S version,

featuring the total black livery and Öhlins suspension, is the embodiment of the new Diavel’s determined and sophisticated style.



The new Diavel is built around the Testastretta DVT 1262 engine, a beacon of power, beauty and sophistication. Its 152 hp translate to unbelievable

acceleration and pick-up, while the flat and consistent torque curve since low rpm allows steady and easy to handle delivery.


The Ride by Wire (RbW) control  matched with three Riding Modes and three Power Modes allows to personalise engine responsiveness.

A true beauty, as far as mechanics and design go, and a real game changer on the road.

DUCATI FACTORY SPECIFICATIONS

MODELDUCATI DIAVEL 1260
ENGINE TYPEFour stroke, Testastretta DVT (Desmodromic Variable Timing), 90° L-Twin,
4 Desmodromically actuated valves per cylinder, dual spark
Year2019
Displacement / Capacity 1262 cc / 77 cu in
Bore X Stroke106 x 71.5 mm
Compression Ratio13.0:1
Cooling SystemLiquid Cooled
Max Power159 hp / 117 kW @ 9500 rpm
Max Torque128.9 Nm / 95 lb-ft @ 7500 rpm
IgnitionElectronic
InductionElectronic fuel injection system, Øeq 56 mm elliptical throttle bodies with Ride-by-Wire system
Start SystemElectric
TRANSMISSION SPECS
Lubrication
Gear Box6-Speed
ClutchSlipper and self-servo wet multiplate clutch with hydraulic control
Primary / Final DriveFinal Drive :   Chain, Front sprocket Z15, Rear sprocket Z43
Primary Drive :   Straight cut gears, Ratio 1.84:1
Secondary drive
Gear Ratio1st    37/15,      2nd    30/17,      3rd    27/20,      4th    24/22,      5th    23/24,     6th    22/25
CHASSIS SPECS
FrameTubular steel trellis frame
Front Suspension50mm USD adjustable fork
Rear SuspensionSingle shock absorber, adjustable preload and rebound,  remote reservoir. Single sided cast/trellis frame swingarm, natural anodized
and brushed swingarm

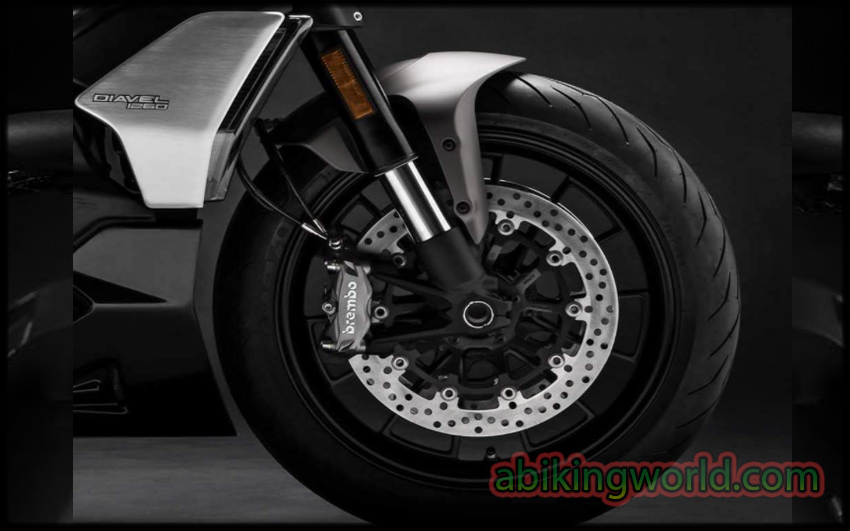

BrakesFront Brakes:  2 x 320mm semi-floating discs,  Radially mounted Brembo monobloc 4-piston M4.32 callipers, PR18/19 radial
                              master cylinder.

Rear Brakes :   Single  265mm disc, 2-piston Brembo floating calliper

ABS:                       Cornering ABS Evo
Traction Management
Exhaust SystemStainless steel pipes and single muffler with twin tail pipes, Catalytic converter and 2 lambda probes
DIMENSION SPECS
Overall Length
Seat Height780 mm / 30.7 in
Overall Height
Overall Width
Overall WeightDry Weight -    214 kg / 481 lbs
Wet Weight -    244 kg / 538 lbs
Wheelbase1600 mm / 63.0 in
Inner Leg Curve
WHEEL SPECS
Wheels / RimsFront Wheel :    Light alloy, cast - 3.50 x 17

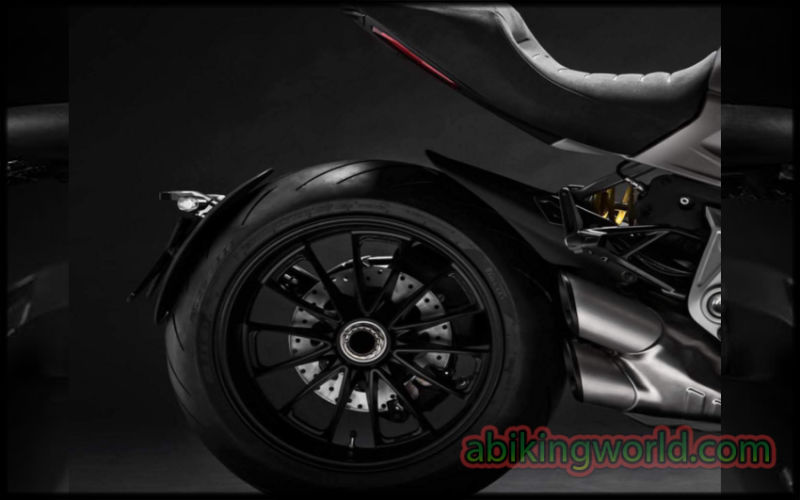

 Rear Wheel:    Light alloy, cast - 8.00 x 17
Front Tyre120/70 ZR17 Pirelli Diablo Rosso II
Rear Tyre240/45 ZR17 Pirelli Diablo Rosso II
Front Wheel Travel120 mm / 4.7 in
Rear Wheel Travel110 mm / 4.33 in
Rake27°
Trail120 mm / 4.7 in
FUEL SYSTEM
Fuel Capacity17 Litres / 4.5 US gal
Fuel Reserve
Fuel Consumption43.5 mpg (5.4 l/100 km)
ADDITIONS

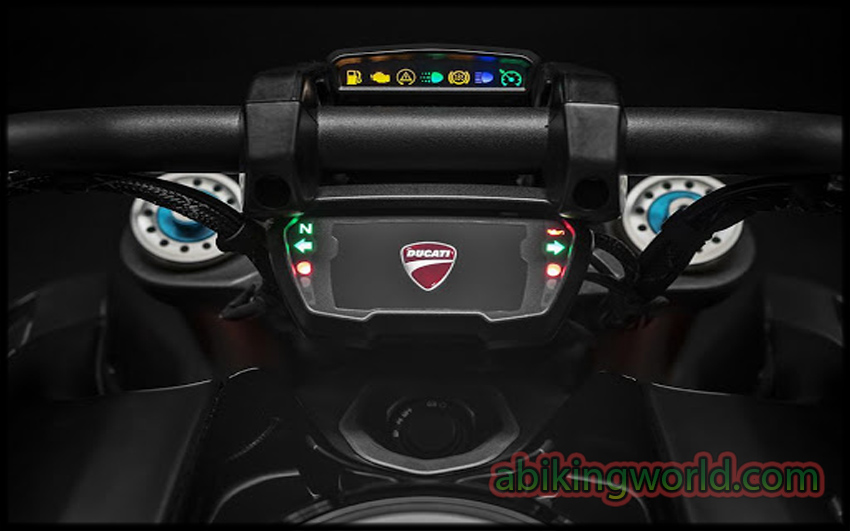

Instrumentation3.5 in TFT colour display and dedicated warning light display
EquipmentSafety Equipment Riding Modes, Power Modes, Ducati Safety Pack (Cornering ABS Evo, Ducati Traction Control Evo DTC),
Ducati Wheelie  Control Evo (DWC)
Cruise control, Ducati Power Launch Evo (DPL), Hands-Free, Backlit handlebar switches, 3.5 in TFT colour display, Full LED lighting system, Self cancelling  turn indicators
Top Speed169 mph (est)
