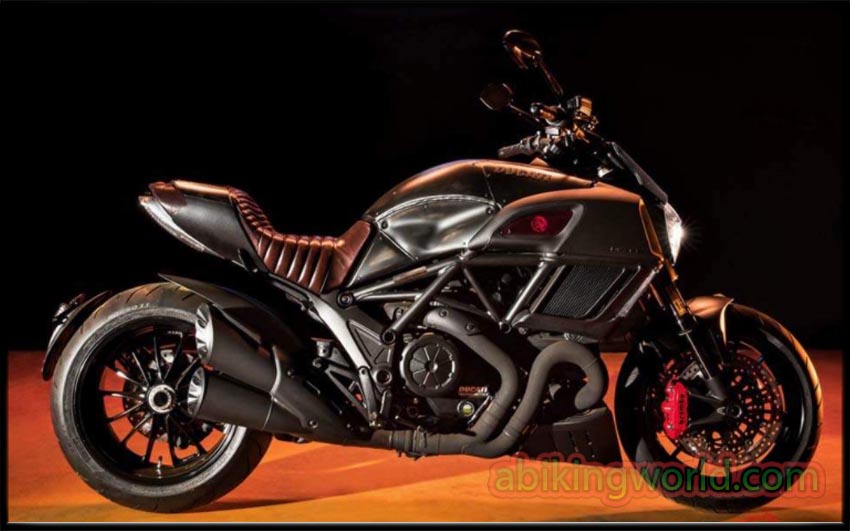

DUCATI diavel DIESEL LIMITED EDITION 2017 FACTORY SPECIFICATIONS

DIAVEL LIMITED EDITION

DIAVEL LIMITED EDITION

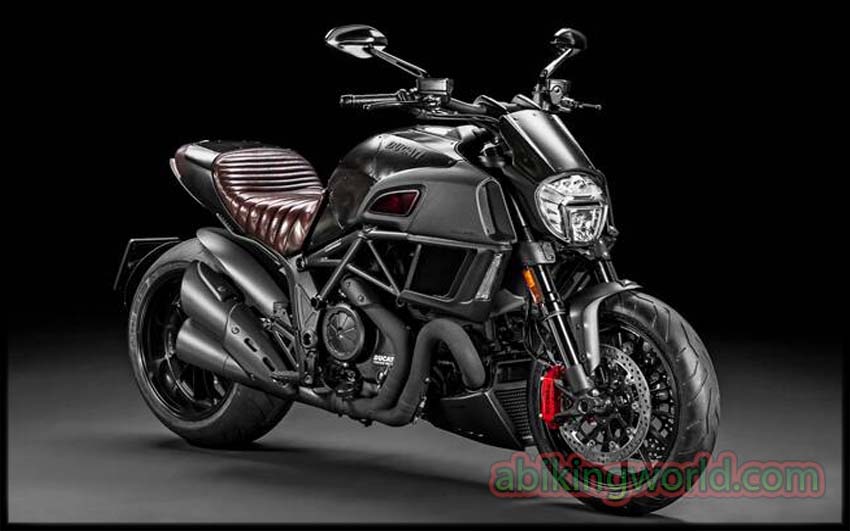

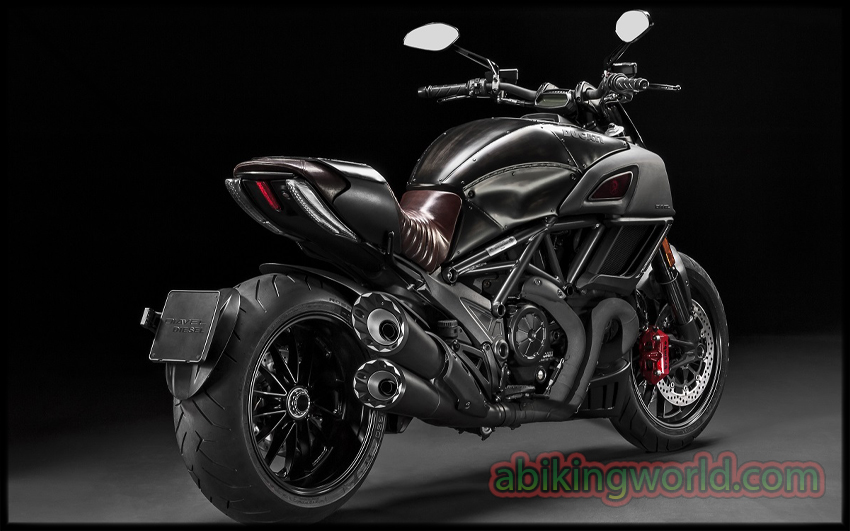

Ducati and Diesel have unveiled their new collaboration – the Ducati Diavel Diesel. Merging elements of the past and future, the Ducati Diavel Diesel –
of which only 666 numbered units will be produced – is the fruit of  collaboration between Andrea Rosso, creative director of Diesel Licences,
and the Ducati Design Center.


Power is from the 162hp  Testastretta 11° DS engine combined with the Ducati Safety Pack (anti-lock braking and traction control).


The collaboration with Diesel enabled us to explore original stylistic and technical aspects whilst staying within the Ducati brand and fully respecting its values.  The details characterizing the Diavel Diesel cannot fail to captivate connoisseurs of special bikes but also people from different walks of life.

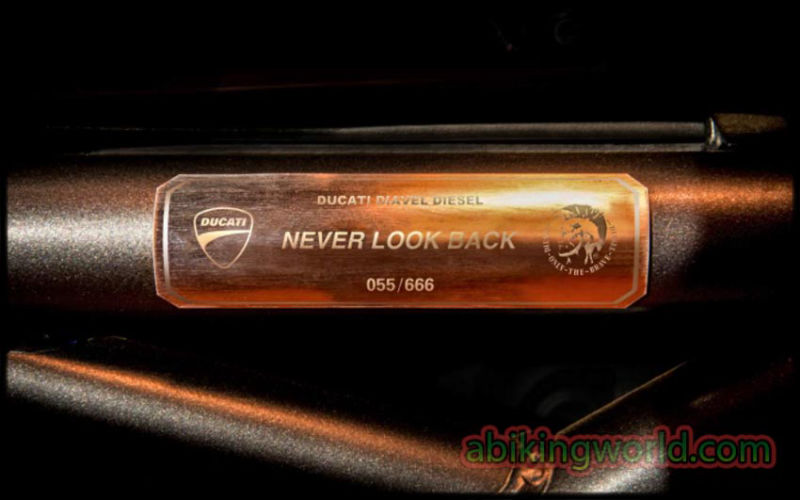

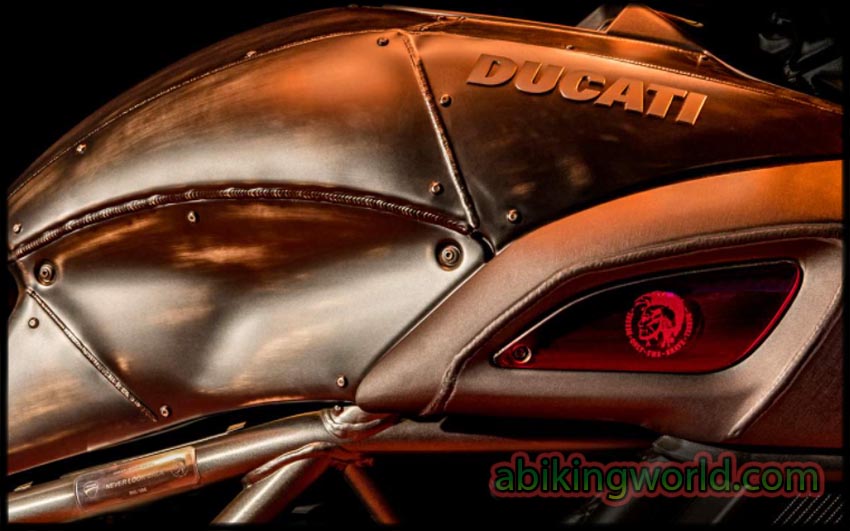

“It’s an important bike that reflects the rock side of Diesel’s DNA,” explained Andrea Rosso. “The wording ‘Never look back’ engraved with the two logos captures the essence  of this collaboration: a timeless bike that catches the eye with so many unmistakable details, such as the brushed stainless steel with visible welding and rivets.

Ducati, Diavel and Diesel, three words, six letters each, forming 666, the limited number of this new collaboration.”



DUCATI FACTORY SPECIFICATIONS

MODELDucati Diavel Diesel Limited Edition
ENGINE TYPEFour stroke, 90°“L”twin cylinder, DOHC, desmodromic 4 valve per cylinder
Year2017
Displacement / Capacity 1198.4 cc / 73.1 cu-in
Bore X Stroke106 x 67.9mm
Compression Ratio11.5:1
Cooling SystemLiquid Cooled
Max Power152 hp / 113.3 kW @ 9500rpm
Max Torque94 lb-ft / 127.5 Nm @ 8000rpm
IgnitionMarelli Electronic
InductionMitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Start SystemElectric
TRANSMISSION SPECS
Lubrication
Gear Box6 Speed
ClutchLight action, wet, multiplate clutch with hydraulic control.  Self-servo action on drive, slipper action on over-run.
Primary / Final DriveFinal Drive :   Chain Front sprocket 15; Rear sprocket 43
Primary Drive :
Secondary drive
Gear Ratio1st   37/15   /   2nd  30/17   /   3rd   27/20   /   4th   24/22   /   5th   23/24   /   6th   22/25
CHASSIS SPECS
FrameTubular steel Trellis frame
Front SuspensionMarzocchi 50mm fully adjustable USD forks,
Rear SuspensionProgressive linkage with fully adjustable Sachs mono-shock. Aluminium single-sided swing arm,
BrakesFront Brakes:   2 x 320 mm semi-floating discs, radially mounted Monobloc  Brembo calipers, 4-piston with ABS

Rear Brakes : Single 265 mm disc, 2-piston floating caliper with ABS
Traction Management

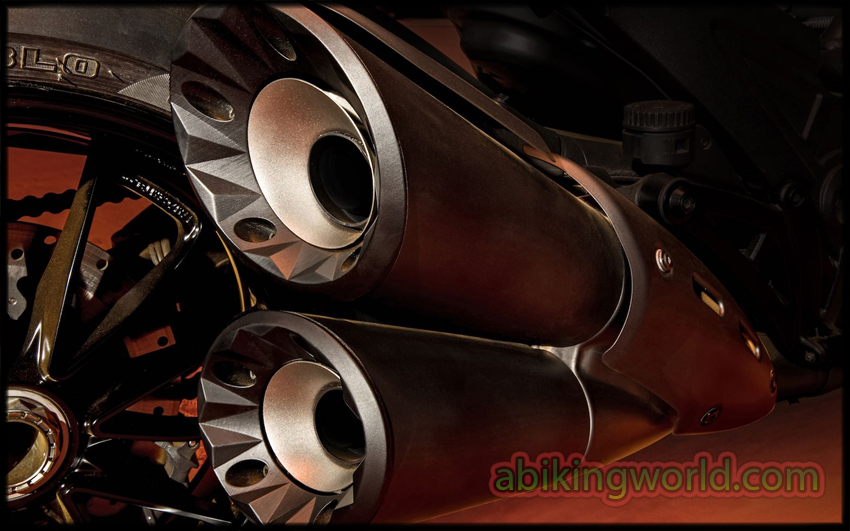

Exhaust SystemLightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
DIMENSION SPECS
Overall Length2235 mm / 87.9 in
Seat Height770 mm /  30.3 in
Overall Height1192 mm / 46.9 in
Overall Width 860 mm / 33.8 in
Overall WeightDry Weight -   210 Kg  /  463 lbs
Wet Weight -  239 kg  / 527 lbs
Wheelbase1590 mm / 62.6 in
Inner Leg Curve
WHEEL SPECS
Wheels / RimsFront Wheel :
 Rear Wheel:
Front Tyre120/70 ZR 17
Rear Tyre240/45 ZR17
Front Wheel Travel120 mm / 4.72 in
Rear Wheel Travel120 mm / 4.72 in
Rake28°
Steering Angle70°
FUEL SYSTEM
Fuel Capacity17 Litres /   5.3 US gal
Fuel Reserve
Fuel Consumption
CAPACITIES
Engine oil
Brake fluid
Top Speed
