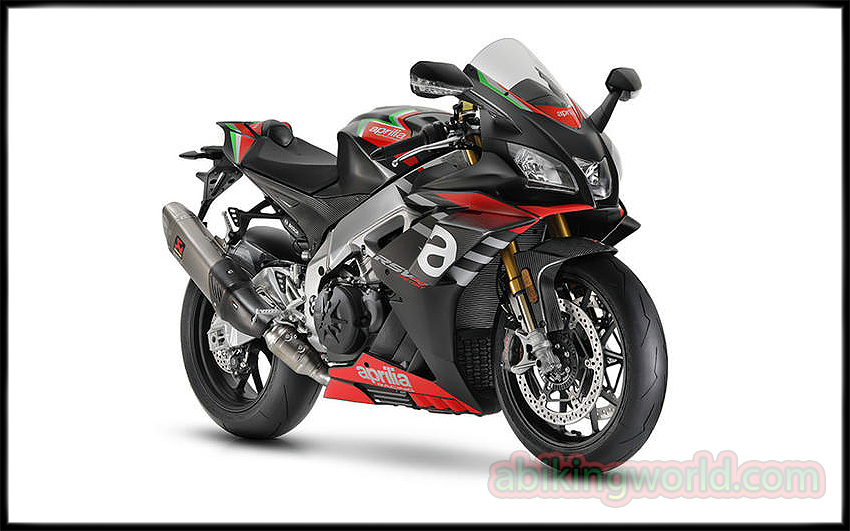

2020 APRILIA RSV 4 1100 FACTORY SPECIFICATIONS

APRILIA RSV4 1100 FACTORY

APRILIA RSV4 1100 FACTORY


Aprilia RSV4 1100 Factory boasts exceptional performance combined with a racing frame and suspension and a series of first-rate electronic controls, added to which is the semi-active suspension.

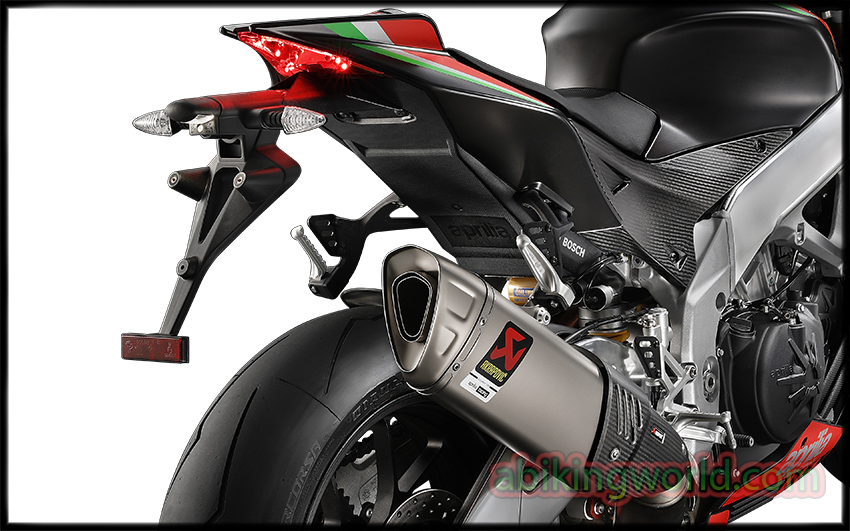

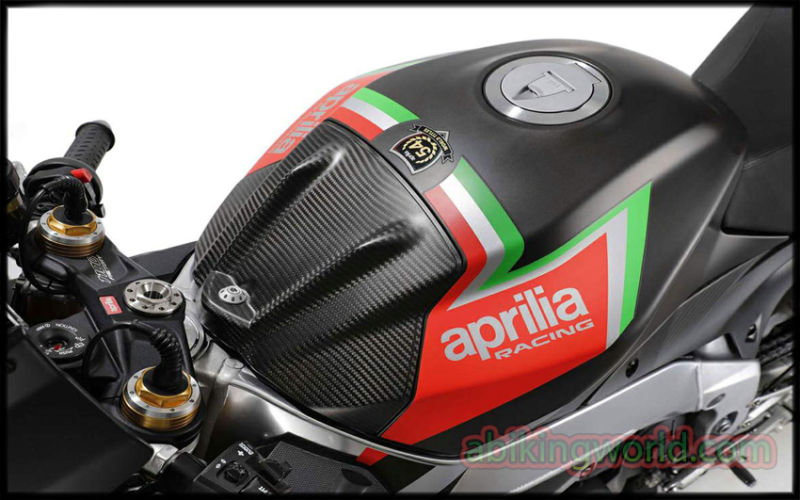

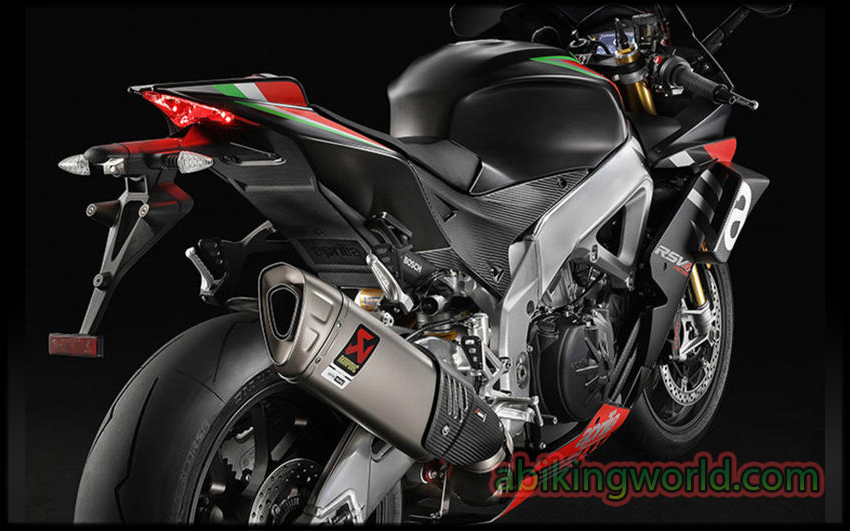

The colour combinations aim to enhance the exclusive nature of prestigious materials such as carbon (utilised on the front mudguard, the side panels, the exhaust terminal guard, the aerodynamic appendages, and the new front tank cover, in contrast with the titanium finish of the street-legal Akrapovic exhaust tailpipe, the same colour as the forged aluminium wheels.

The RSV4 1100 Factory is equipped with a state-of-the-art 1100cc engine reaching 217 hp and 122 nm of torque.

This unique bike stands out for its new "Atomico Racer" color.

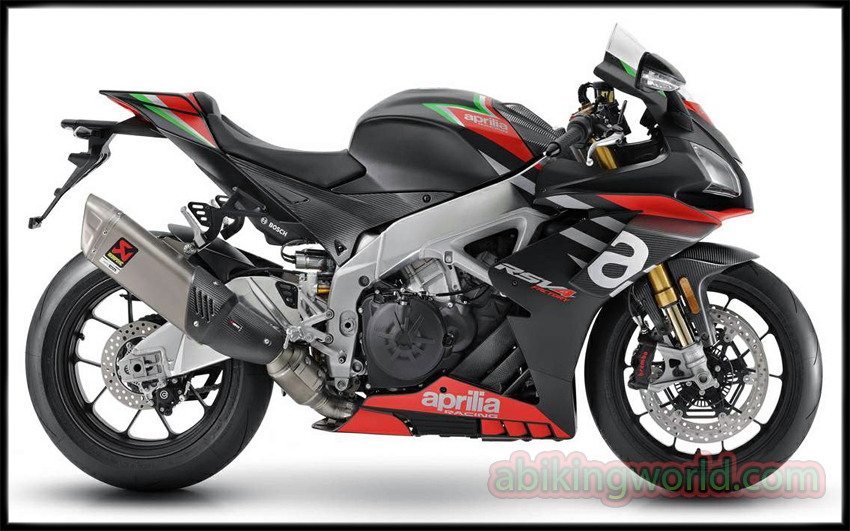

For the graphics of the superstructure, an attractive total matte black look enhances all the beauty of the sculpture-like twin-spar frame and swingarm made of aluminium.

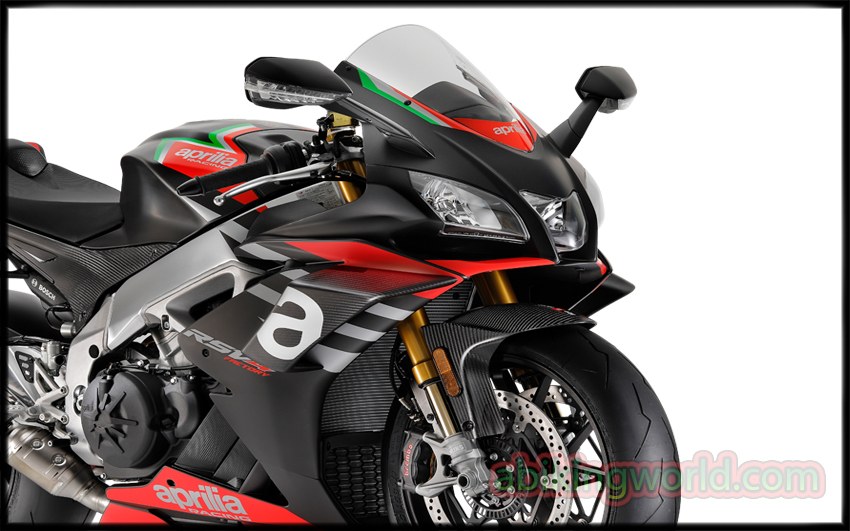

Aprilia adds aerodynamic winglets to the fairing for the first time on a factory superbike, thanks to developments made by Aprilia Racing on the RS-GP prototype from which they are derived.

The fork, the shock absorber and the Öhlins steering damper with a "SMART EC 2.0 electronic control and a OBTI interface " allow for a semiactive (3 settings) or manual (3 settings) functioning.

On both versions two of the settings are aimed at a track usage (with specifics adjustments based on the circuit and the tires), while one is aimed at road usage. All settings are customizable.


SOURCE: APRILIA.COM


RSV4 1100 FACTORY SPECIFICATIONS

MODELAPRILIA RSV4 1100 FACTORY
ENGINE TYPEFour stroke, longitudinal 65° V four , DOHC, 4 valves per cylinder
Year2020
Displacement / Capacity  1077 cc / 85.7 cu-in
Bore X Stroke81 x 52.3 mm
Compression Ratio 13.6:1
Cooling SystemLiquid Cooled
Max Power217 hp / 159.6 kW @ 13200 rpm
Max Torque122 Nm / 90 lb-ft @ 11000 rpm  [115 Nm at 10,500 rpm]
IgnitionMagneti Marelli digital electronic ignition system integrated in engine control system, with one spark plug per cylinder and
 “stick-coil”-type coils
InductionAirbox with front dynamic air intakes. 4 Marelli 48-mm throttle bodies with 8 injectors and  latest generation Ride-By-Wire engine management.
Choice of three different engine maps selectable by the rider with bike in motion, Track, Sport, Race
Start SystemElectric
TRANSMISSION SPECS
LubricationWet sump lubrication system with oil radiator and two oil pumps (lubrication and cooling)
Gear Box6 Speed gearbox - Cassette type
ClutchMulti-disc oil bath with mechanical slipper system
Primary / Final DriveFinal Drive :      Chain
Primary Drive :  Straight cut gears and integrated flexible coupling, drive ratio: 73:44 (1,659)
Secondary driveSecondary drive Chain: Drive ratio: 42:16 (2.625)
Gear Ratio1st: 39/15 (2.600) 2nd: 33/16 (2.063) 3rd: 34/20 (1.700) 4th: 31/21 (1.476) 5th: 31/23 (1.348) 6th:; 34/27 (1.259)
CHASSIS SPECS
FrameAluminium dual beam chassis with pressed and cast sheet elements Available adjustments: headstock position and rake,
engine height, swingarm pin height. Smart EC 2.0 electronically managed Öhlins steering damper
Front SuspensionSmart EC 2.0 electronically managed Öhlins NIX fork. 43 mm stanchions, with TIN surface treatment. [Sachs fork with 43 mm stanchions],
Aluminium radial calliper mounting bracket. Adjustable spring pre-load and hydraulic compression and rebound damping.
Rear SuspensionSachs monoshock adjustable in: hydraulic compression and  rebound damping, spring pre-load and centre-to-centre distance.
BrakesFront Brakes:
2 x 330-mm diameter  floating stainless steel disc with lightweight stainless steel rotor and
aluminium flange with 6 pins. Brembo Stylema® [M50] monobloc radial  callipers with 4 30 mm opposing pistons. Sintered pads.
Radial pump and metal braided brake hose.

Rear Brakes :
Single 220 mm diameter disc; Brembo calliper with two  32 mm separate pistons. Sintered pads.
Pump with integrated tank and metal braided hose Bosch 9.1 MP ABS with cornering  function, adjustable to 3 maps equipped with
RLM (Rear wheel Lift-up  Mitigation) (can be disabled).
Traction ManagementAPRC System (Aprilia Performance Ride Control), which includes Traction Control (ATC), Wheelie Control (AWC), Launch Control (ALC),
 cruise control (ACC) and speed limiter (APT), all of which can be configured and deactivated independently
Exhaust System4 into 2 into 1 layout, two lambda probes, lateral single silencer with ECU-controlled bypass valve and integrated trivalent
catalytic converter
DIMENSION SPECS
Overall Length2055 mm / 80.9 in
Seat Height853 mm / 33.5 in
Ground Clearance130 mm / 5.1 in
Width735 mm / 28.9 in (at the handlebar)
Overall WeightDry Weight -  182 kg / 401 lbs
Wet Weight -  204 kg / 450 lbs
Wheelbase1441.6 mm /  56.7 in
WHEEL SPECS
Wheels / RimsAprilia in aluminium alloy wheels with 3 split spoke design
Front Wheel :
3.5 x 17

Rear Wheel:
6.0 x 17
Front TyreRadial tubeless 120/70 ZR17
Rear TyreRadial tubeless 200/55 ZR 17 (alternative: 190/50 ZR 17; 190/55 ZR 17)
Front Wheel Travel120 mm / 4.7 in
Rear Wheel Travel130 mm / 5.1 in
Trail103 mm / 4.0 in
Steering Angle24.5°
FUEL SYSTEM
Fuel Capacity18.5 Litres / 4.9 US gal
Fuel Reserve4 Liters / 1.1 US gal
CAPACITIES
Fork oil per rod
Engine oil w/o Filter
Engine oil with filter
Brake fluid
Top Speed
