APRILIA 1984 - 1985 ETX 125 SPECIFICATIONS

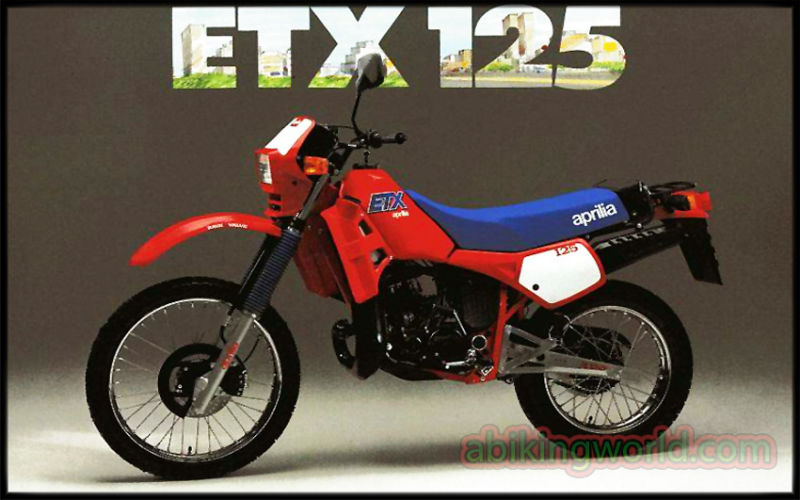

1984 Aprilia ETX 125

Aprilia ETX 125


The first ETX 125, marketed in 1984, is characterized by a Rotax 126 engine with no exhaust valve RAVE Aprilia and is the first mass-produced to fit the engine produced by the Austrian company.

At a pre-series marketed at the end of 1984 it was immediately followed by the final version sold in January 1985.

The final version differs from the pre-set with the following changes:

Frame painted in Red ( pre series was Silver)

All scoops painted grey ( pre series was White)

Sella blue or red with white screen-printed Aprilia Logo printed sideways.(in pre-production on the flanks saddle is printed Aprilia ETX.


The ETX has a nice line with superstructures well designed and implemented.

Valid and complete instrumentation with water thermometer placed on the radiator itself and the beautiful blocks electrical CEV.

The chassis, the same as for the pre-series , uses a single beam steel frame to cradle split square tube of a conventional  fork Marzocchi 35mm coupled to a rear suspension that uses the proven APS  system.

The braking system uses a 230 mm front disc and rear drum by a 125mm. The Rotax 126 engine is equipped with reed valve induction, forced circulation
cooling and automatic mixer.

There are no exhaust valve, balance shaft or electric starter.

The maximum power at the wheel of 18.28hp at 8250 rpm and the maximum speed of 121.5 km / h.

Price in 1984: Lire 3,250,000


125stradali.com


Aprilia ETX 125  SPECIFICATIONS

MODELAprilia ETX 125
ENGINE TYPETwo stroke single cylinder
Year1984-1985
Displacement / Capacity 123.6 cc / 7.54 cu in
Bore X Stroke54 x 54 mm
Compression Ratio15.5:1
Cooling SystemLiquid cooled
Max Power13.6 kW / 18.3 hp @ 8250 rpm
Max Torque
Ignition
Induction
Start System
TRANSMISSION SPECS
Lubrication
Gear Box6 Speed
Clutch
Final driveChain
Secondary transmission:
-------------
CHASSIS SPECS
FrameSingle steel beam cradle
Front SuspensionHydraulic telescopic front fork, Marzocchi Ø35 mm
Rear SuspensionSwingarm with single shock absorber
Front BrakesSingle disc, Ø230 mm
Rear BrakesDrum, Ø125 mm
------------
DIMENSION SPECS
Overall Length
Seat Height
Overall height
Width
Dry Weight113 kg / 249 lbs
WHEEL SPECS
Front Tyre2.75-21
Rear Tyre4.00-18
Front Wheel / Rim
Rear Wheel / Rim
--------------
FUEL SYSTEM
Fuel System
Fuel Capacity10 Litres / 2.6 US gal
Fuel
_________
Standing 0 - 1000m
Top Speed121.5 km/h / 75.5 mph
